Performance of the SMC-X Algorithm: A Deep Dive
The SMC-X algorithm stands out in computational materials science as a robust method for performing large-scale simulations using sequential Monte Carlo (MC) methods. By generalizing the checkerboard algorithm, SMC-X capitalizes on the inherent independence of Monte Carlo trials by partitioning systems into larger link-cells. This partitioning not only isolates the effects of individual MC trial moves but also opens avenues for unparalleled parallelization, especially applicable in high-performance computing environments.
Understanding the SMC-X Framework

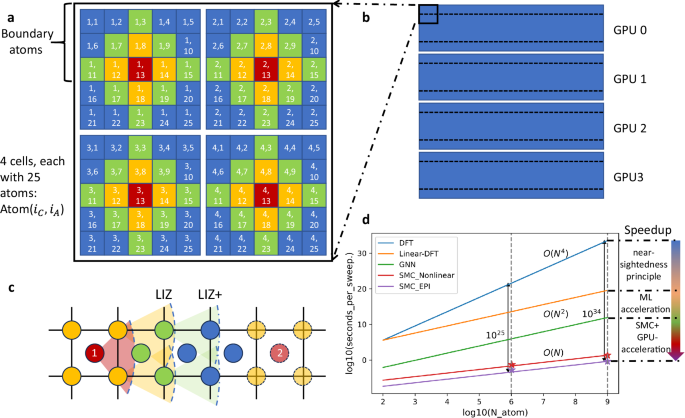

At its core, the SMC-X algorithm operates on a sophisticated framework that utilizes a 2D square lattice model. Each site in the lattice is represented by two indices: (i_C), indicating the specific link-cell, and (i_A), which denotes the atom within that link-cell. The introduction of link-cells plays a pivotal role in managing interactions, as atoms within the same index (i_A) but different (i_C) indices can undergo MC updates independently. This relationship creates a remarkable opportunity for parallel processing, crucial for effectively scaling computations across multiple GPU environments.
For instance, consider a specific atom located at position (1, 13). During MC updates, it can swap with any of its nearest neighbors located at (1, 12), (1, 14), (1, 8), and (1, 18). Due to the nearest-neighbor interaction model, these neighbor swaps do not influence the energy calculations required for the updates of atom (1, 13). Thus, the degree of parallelism scales with the number of cells, (n_C), allowing for significant efficiency improvements during simulations.
Local Interaction Zones (LIZ)
The concept of Local Interaction Zones (LIZ) further enhances the SMC-X algorithm’s capability. For any atom, the LIZ comprises neighboring atoms that interact with it. By focusing computational efforts only on the local energies of sites within this zone, the SMC-X algorithm minimizes unnecessary calculations and leverages the simplified energy change evaluations, particularly in systems with short-range interactions.
The LIZ includes neighboring sites categorically marked as yellow and green in the lattice diagrams. By ensuring that MC trials on one site do not influence the energies of another’s LIZ, SMC-X maintains computational efficiency while accommodating interactions over relatively large scales.
Domain Decomposition: A Parallelization Paradigm
One of the standout features of the SMC-X method is its domain decomposition capability, which allows the entire lattice to be distributed across multiple GPUs. This feature is illustrated in computational diagrams that show how the chemical configurations extend beyond the boundaries of individual computations, necessitating communication between GPUs during each MC sweep. This approach not only increases the maximum size of the systems that can be simulated—enabling the treatment of over a billion atoms—but also effectively orchestrates the complexity of interactions while maintaining high accuracy.
Speed Comparisons: Breaking Previous Boundaries
A compelling metric of SMC-X performance is its speed relative to traditional computational methods such as density functional theory (DFT), linear DFT, and Graph Neural Networks (GNN). An illustrative log-log plot demonstrates the staggering speedup of the SMC-X algorithm, achieving a factor of (10^{25}) for a 1 million atom system when compared to DFT. Scaling these simulations to a billion atoms showcases the capability of SMC-X to reach a speedup of (10^{34}).
Importantly, these speed comparisons highlight not only the efficiency gains but position SMC-X as a competitive alternative to molecular dynamics methods, which have long been favored in terms of scalability.
Advanced Energy Models: The Effective Pair-Interaction (EPI) Model
The performance of the SMC-X algorithm further benefits from sophisticated energy models, including the Effective Pair-Interaction (EPI) model and a nonlinear local-Short Range Order (qSRO) model. The EPI model, derived from machine learning approaches based on DFT data, allows for efficient assessments of energy changes—which enables swift reconfiguration of systems with high precision.
During evaluations, both the EPI and qSRO models exhibit remarkable accuracy, with RMSE values significantly lower than typical benchmarks observed in DFT calculations. Their efficacy is particularly pronounced in systems modeling high-entropy alloys (HEAs), where complex interactions arise. The models seamlessly integrate with the SMC-X algorithm, enhancing accuracy while balancing computational speed.
Nanostructure Applications: Insights from Simulations
The strengths of the SMC-X method shine particularly bright when examining complex phenomena such as nanostructure evolution in HEAs. For example, in simulations of the (Fe{29}Co{29}Ni{28}Al{7}Ti_{7}) alloy, the SMC-X algorithm facilitates real-time exploration of phase transitions, capturing the formation of intricate nanoparticle distributions and the resulting mechanical properties.
Through meticulously structured simulations, the algorithm enables studies of morphologies and particle sizes, consistently aligning simulated findings with experimental insights. This correlation not only reinforces the versatility of the SMC-X but showcases its transformative potential in understanding the mechanics behind materials with exceptional strength and ductility.
Future Directions: Enhancing Computational Techniques
The engagement with complex systems, as presented through the SMC-X method and its operational models, positions this algorithm at the forefront of atomistic simulations. As computational power continues to advance, the integration of enhanced parallelization techniques and sophisticated energy models promises to provide deeper insights into material behaviors with unprecedented accuracy.
This trajectory not only indicates the potential application of the SMC-X method in broader scientific initiatives but also underscores the evolving landscape of computational materials science. With its remarkable performance in scaling simulations, the SMC-X algorithm is paving the way for new discoveries and innovations in material design and functionality.
