The Approach of Our Intelligent Photodetector
Introduction to High-Dimensional Photodetection
In the realm of optical detection, the capability to measure and differentiate high-dimensional information has been historically limited. Traditional methods primarily focus on two-dimensional recognition—polarization and intensity, or wavelength and intensity. However, real-world light fields present a tapestry of varied polarization and intensity over multiple wavelengths, a challenge that conventional photodetectors find difficult to meet. To tackle this limitation, we have developed an intelligent high-dimensional photodetector that leverages the encoding of information into frequency-polarization-sensitive surface plasmon polariton (SPP) vortices. This innovative design allows for the accurate decoding of information using advanced neural networks.
The Core Functionalities of Our Device

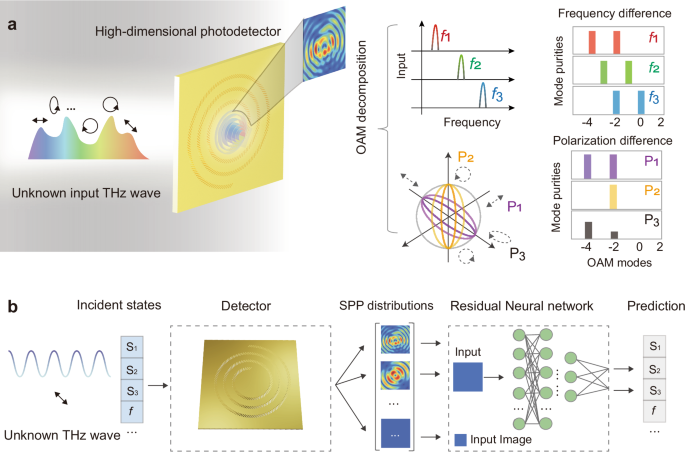

At the heart of our device is a spatially dispersive metasurface embedded with a series of nanoslits, capable of generating polarization-wavelength-dependent interferograms. When incident light—with diverse polarization and frequency—strikes the metasurface from the substrate side, it produces distinct SPP vortices via an on-chip spin-orbit interaction. This interaction facilitates a dispersion-driven orbital angular momentum (OAM) multiplication mechanism, where the generated topological charge correlates directly with the driven frequency, and the relative amplitudes depend on polarization.
The intriguing aspect of our device is its ability to superimpose these OAM modes. As a result, it generates exotic intensity distributions sensitive to both polarization and wavelength, allowing for the differentiation of multifaceted information in a manner previously unattainable.
Metamaterial Design Principles
Our innovative photodetector operates by exciting customized vortex interference. The metasurface is designed to convert left circularly polarized (LCP) and right circularly polarized (RCP) light into respective Bessel vortex beams defined by their topological charge. This unique mechanism is particularly beneficial for arbitrarily polarized incident light, which can be viewed as a superposition of LCP and RCP components.
The device is built to identify both wavelength and polarization signals. The transmitted plasmonic field exhibits a complex distribution that mirrors the purity of the incident polarization state, thereby enabling our device to accurately measure and respond to varying incoming stimuli.
Independent Modulation of Phase Responses
One of the most significant advantages of our device design lies in its ability to independently modulate frequency-dependent phase responses and spin-dependent responses. Instead of relying on conventional paired slit methods, which are often limited to a singular frequency, our metasurface employs a single subwavelength slit. This innovative approach eliminates frequency dispersion, ensuring that each unit cell’s spatial arrangement solely dictates the spin-dependent Berry phase.
Generating Controlled Polaritonic Vortices
The metasurface’s design integrates the principles of phase modulation to create frequency-polarization-controlled polaritonic vortices with optimal precision. The structure comprises slits arranged along an Archimedean spiral, enabling both the generation of frequency-dependent vortex phases and spin-dependent phases. This clever orchestration empowers our device to continuously map into OAM topological charges without sacrificing performance or efficiency.
Machine Learning for Enhanced Detection
Incorporating deep learning solutions represents a pivotal shift in our ability to manage and interpret high-dimensional data. Once light interacts with the device, the resulting SPP patterns feed into a residual neural network model designed to extract wavelength and polarization information across a broad spectrum (0.3–1.1 THz).
This deep learning system not only leverages extensive databases of plasmonic patterns but does so with remarkable speed and accuracy. By training on simulated and real-world data, the neural network effectively decodes multi-dimensional information even in the presence of environmental fluctuations, paving the way for practical applications.
Addressing High-Dimensional Information Encryption
As we explore the innovative capabilities of our photodetector, it becomes evident that our design enables not just detection, but also the encryption of high-dimensional information. By employing OAM modes generated from distinct incident states, the system provides a unique framework for high-security information encryption.
Through the establishment of a one-to-one mapping between input wavelengths, polarizations, and OAM spectra, we create the potential for advanced security measures. Identifying specific key parameters embedded within this mapping, we can selectively encode sensitive information, ensuring robust data transmission that resists eavesdropping and other security vulnerabilities.
Practical Applications in Secure Communication
Envisioning practical applications, suppose a transmitter aims to send geographical coordinate information to a receiver. Our device can encode this data via OAM modes, effectively transforming longitude and latitude details into securely transmitted signals. The strength of signal pairs is analyzed to decrypt the information, facilitating an intricate yet secure transmission process.
This adaptability in transmitting sensitive data could revolutionize secure communication, allowing for safe transmission across various platforms and applications.
Closing Remarks
Our intelligent high-dimensional photodetector stands at the forefront of optical detection technology, blending advanced engineering principles with innovative machine learning applications. By embracing the complex behaviors of light and metadata, we open doors not only for enhanced detection capabilities but also for secure, encrypted communication, setting the stage for future advancements in the field.
