Data Processing and Modeling Workflow in Mining Analysis

Introduction

The integration of satellite imagery and advanced modeling techniques has revolutionized the approach to analyzing mining operations, particularly in identifying and assessing land-use types. This article delves into the comprehensive data processing and modeling workflow employed in a significant study on global copper mine areas.

Methodological Pipeline Overview

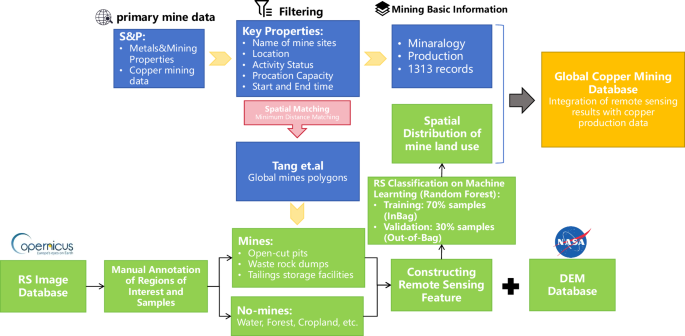

As illustrated in Figure 1, the methodological pipeline consists of several key steps: data integration, satellite imagery preprocessing, classification model development, and data validation.

Data Integration

The workflow begins with the integration of mine locations from the S&P Global databases, which includes diverse attributes related to mining operations. These point data are then matched with mine footprint polygons provided by Tang et al. (2023) to ensure a comprehensive dataset that captures both spatial and operational characteristics.

Satellite Imagery Preprocessing

Utilizing Sentinel-2 satellite imagery from 2022, the preprocessing phase is critical for creating cloud-free image composites on the Google Earth Engine platform. This ensures that data used for further analysis is accurate and reliable. Key spectral indices are subsequently calculated, including the Normalized Difference Vegetation Index (NDVI), Normalized Difference Water Index (NDWI), Bare Soil Index (BSI), Enhanced Vegetation Index (EVI), and Index-Based Built-up Index (IBI). Additionally, a Digital Elevation Model (DEM) is integrated to enhance classification accuracy.

Classification Model Development

The heart of the analysis lies in developing a classification model using Random Forest (RF). This robust algorithm leverages the spectral indices and DEM data, enabling the model to effectively differentiate between various land-use types associated with copper mining activities. The subsequent performance evaluation utilizes confusion matrices to derive critical metrics such as overall accuracy, user’s accuracy, producer’s accuracy, and Kappa coefficient.

Mine Site Data Sources and Management

Mapping land use areas involves ascertaining the precise locations of global copper mines. However, major datasets, including those from S&P Global and USGS, predominantly provide point data without delineating spatial extent. This necessitates the integration of these point data with footprint data sources to create a more accurate representation of mining areas.

Connecting Operational Data with Spatial Features

To achieve this, point data are initially transformed into vector format spatial point features, and then projected into the Geographic Coordinate System (GCS_WGS_1984). By applying a spatial join operation with a 1 km buffer around mining footprints, the study effectively accounts for potential inaccuracies in boundary delineation. This comprehensive spatial linking not only enhances the precision of land-use classification but also connects operational data, such as production capacity and status, to the recognized area.

Satellite Data Sources and Preprocessing

Sentinel-2 imagery plays a pivotal role in the classification and analysis of copper mine areas. With its high spatial and spectral resolution capabilities, the satellite system encompasses Sentinel-2A and Sentinel-2B, which together offer comprehensive terrestrial observation records.

Cloud-Free Image Synthesis

To mitigate cloud interference in remote sensing images, a series of images collected from summer to autumn are synthesized. Utilizing the median pixel values, cloud-free imagery for 2022 is created specifically for the global extraction of land-use areas associated with copper mines.

Remote Sensing Classification of Land-Use Types

The copper mine areas exhibit distinct land-use types such as open-cut pits, waste rock dumps, and tailings storage facilities. Accurate classification of these types is achievable through automated remote sensing classification methods, which employ unique spectral characteristics inherent to each land-use category.

Features of Land-Use Types

• Open-Cut Pits: The primary source of ore, often reflecting the scale and intensity of mining.
• Waste Rock Dumps: Locations for overburden disposal, which frequently change shape due to active mining processes.
• Tailings Storage Facilities: These areas present ecological risks due to their large size and the potential for liquid waste spillover.

Automated classification leverages machine learning algorithms trained on sample points that represent mining and non-mining features, ensuring a robust methodology for accurate identification.

Land Use Classification Model Development

The Random Forest algorithm stands out due to its enhanced classification capability when dealing with diverse data characteristics.

Functionality of Random Forest

RF operates by creating numerous decision trees based on bootstrapped subsets of the training data. Each tree’s performance contributes to an overall ensemble decision, improving accuracy and reducing the risk of overfitting. Critical performance evaluations yield insightful metrics to gauge the effectiveness of the model.

Evaluating Copper Mining Land-Use Intensity

The study also endeavors to evaluate the intensity of copper mining operations through operational statistics. Given the variations in geographical and geopolitical contexts, a parameter termed the unit area mining intensity index is defined.

Calculating Mining Intensity

By analyzing the production capacity, historical production data, and land use area, the intensity per unit area is computed. Data from S&P’s Capital IQ Pro database enrich the contextual understanding of mining activities.

Data Collection and Attribute Assignment

Vectorized data of copper mining areas derived from satellite classifications undergoes careful refinement to ensure accuracy. Each polygon retains specific attributes, enhancing the dataset’s utility for further analysis.

Attributes of Interest

These attributes include property name, geolocation coordinates, primary and secondary commodities, operational status, administrative regions, land use types, cumulative production, and mining intensity. Such well-defined data attributes provide critical insights into the operational dynamics of mining sites globally, ensuring alignment with existing datasets.

By implementing this comprehensive methodology, the study not only paves the way for more precise assessments of mining operations but also allows for better planning and resource management in the face of increasing extractive demands worldwide.
