A Deep Dive into Personalized Thermal Comfort Prediction: Integrating Digital Twins and Attention-Enhanced LSTM Models

Introduction to Personalized Thermal Comfort Prediction

The quest for personalized thermal comfort in indoor environments has been enhanced by the potential of machine learning and digital technologies. The fusion of a Digital Twin simulation environment with an attention-enhanced Long Short-Term Memory (LSTM) model offers a promising framework to predict and optimize comfort levels while evaluating energy consumption. This comprehensive approach notably addresses individual preferences based on factors like age, clothing, and activity levels.

Overview of the Proposed Framework

The research outlined in Figure 2 showcases an innovative architecture that utilizes a Bidirectional LSTM consisting of 64 units, integrated with a multi-head self-attention mechanism. This architecture is meticulously designed to capture intricate spatiotemporal patterns derived from both environmental inputs and personal attributes of the occupants. Additionally, the framework incorporates explainable AI techniques like SHAP (SHapley Additive exPlanations) and LIME (Local Interpretable Model-Agnostic Explanations), which illuminate model predictions, enhancing transparency and trustworthiness by providing insights into both global feature significance and individual predictions.

Digital Twin Simulation Environment

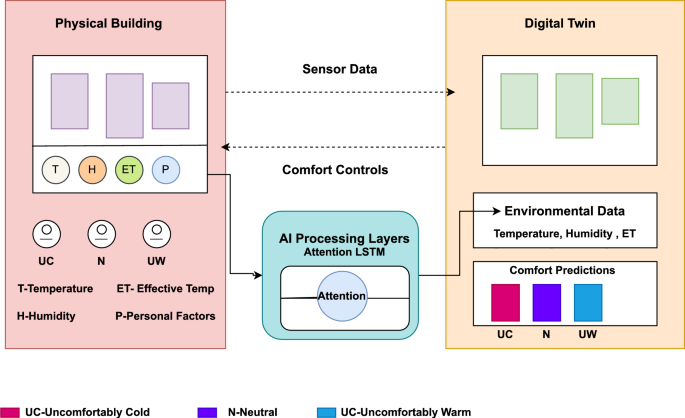

The Digital Twin serves as a virtual counterpart to the physical building, effectively replicating real-time conditions. By systematically adjusting environmental parameters such as temperature and humidity, it generates 2D comfort probability maps. These maps visually represent optimal comfort zones, allowing for immediate identification of conditions that minimize discomfort. Furthermore, the twin also facilitates energy efficiency analyses by comparing the impacts of room-level changes versus personalized adjustments, offering occupants energy-conscious decision-making support.

Thermal Comfort Classification

Thermal comfort is methodically categorized into three classes in this framework:

1. Uncomfortably Cold (UC)
2. Neutral (N)
3. Uncomfortably Warm (UW)

This clear distinction enriches the robustness of the personalized comfort management approach, leading to effective interventions in real-world scenarios.

Data Collection and Pre-processing

The foundation of this predictive framework is a comprehensive dataset derived from the ASHRAE Global Thermal Comfort Database II, encompassing nearly 12,596 entries with 80 columns dedicated to HVAC-related data. This dataset captures critical environmental parameters like air temperature, humidity, and occupants’ subjective comfort feedback.

Data Cleaning

Upon gathering this data, meticulous preprocessing steps are implemented. Missing values are addressed through column elimination or median imputation, and categorical variables are encoded using label encoding. Furthermore, standardization using a StandardScaler ensures the dataset’s consistency and usability.

Feature Engineering

Feature extraction focuses on environmental (temperature, humidity), personal (clothing, metabolic rate, age), and temporal attributes (time of day, season). Thus, the adjusted dataset effectively prepares for classification using the attention-based LSTM model, which ultimately leads to improved predictions.

Attention-Based LSTM Model Architecture

The model architecture is illustrated in Figure 3, showcasing a two-layer Bidirectional LSTM with 64 hidden units in either direction, complemented by a dropout layer to mitigate overfitting risks. The inclusion of a multi-head attention mechanism allows the model to concentrate on significant time steps, enhancing its ability to discern vital environmental thresholds affecting thermal comfort.

Model Training

Training leverages the Adam optimizer with a learning rate set at 0.001, utilizing categorical cross-entropy as the loss function. The system undergoes 50 epochs, implementing early stopping to ward off overfitting. Evaluation metrics such as accuracy, precision, recall, F1-score, and confusion matrices yield a robust understanding of the model’s performance across varied data scenarios.

Digital Twin Integration and Explainable AI

The synchronous operation of the Digital Twin with the Attention-LSTM model enables unparalleled real-time predictions of thermal comfort. By continuously updating the simulated environment based on incoming sensor data, the Digital Twin evaluates variations in comfort levels and generates personalized profiles.

Employing Explainable AI

Explainable AI methods—specifically SHAP and LIME—play a pivotal role in demystifying model predictions. Global feature importance is established through SHAP analysis, while LIME provides localized interpretability, allowing easy understanding of individual predictions. The insights garnered from these analyses prove invaluable for refining HVAC control and optimizing overall system operations.

Mathematical Formulation of the Framework

The mathematical backbone of the Digital Twin framework underscores its operational efficiency. The environmental state at time t, represented as Eₜ, captures a multi-dimensional feature vector comprising all relevant indoor conditions. The integration of personal characteristics corresponds to individual occupants, facilitating the mapping of physical environments to digital states via a defined function.

Probabilistic Output

The model’s output, a probability distribution over thermal comfort classifications (UC, N, UW), is derived using the softmax function applied to the LSTM outputs, accentuating temporal relevance through the attention mechanism.

Thermal Comfort Simulation Scenarios

The Digital Twin is adept at creating thermal comfort scenarios through environmental adjustment simulations. By predicting comfort levels based on modified temperature and humidity settings, the system effectively constructs probability maps that elucidate optimal comfort zones.

Optimization of Comfort and Energy Efficiency

Lastly, the model strives to identify optimal conditions for thermal comfort while being mindful of energy consumption. It balances comfort requirements with energy efficiency by maximizing probabilities of neutral comfort through specified adjustments.

This multifaceted approach not only enhances occupants’ comfort but ultimately aligns with sustainable energy practices in smart building management systems, paving the way for more innovative, personalized environmental control solutions. Through continuous refinement and validation, the framework stands as a testament to the evolving interplay of technology, comfort, and energy efficiency in modern architecture.
