A Deep Dive into the IoT-E-DLM Model for Athlete Performance Monitoring

The proposed IoT-E-DLM (Internet of Things – Edge Deep Learning Model) represents a groundbreaking approach to monitoring athlete performance (AP) through a meticulously integrated ecosystem of sensing hardware, communication frameworks, and deep learning algorithms. This comprehensive model serves as a real-time feedback mechanism tailored for the athletic community, promoting optimal training and health management.

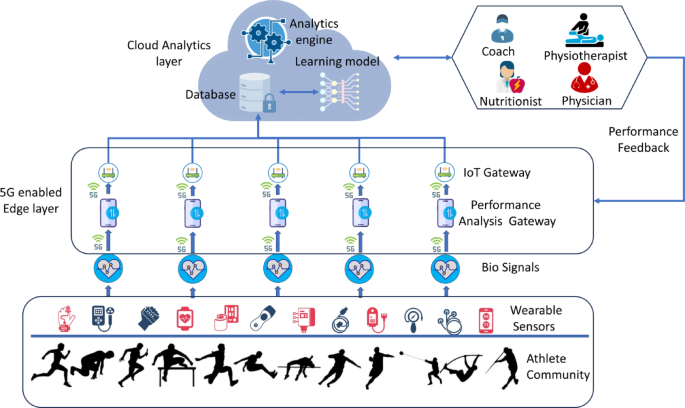

System Architecture

The IoT-E-DLM comprises four essential layers that seamlessly work together to deliver immediate insights and feedback. It begins at the athlete community level, focusing on specific sporting activities and their performance metrics. This foundational layer features a diverse array of wearable sensors, intelligently selected to match different sports disciplines. The network of sensors—ranging from motion tracking to physiological monitors—captures crucial data during both training sessions and competitive events.

Layer One: Athlete Community and Wearable Sensor Network

This initial layer is a heterogeneous composite of sensors crafted to track various athletic parameters. For instance, Inertial Measurement Units (IMUs) gather biomechanical data, while physiological sensors monitor vital signs like heart rate. Environmental sensors gauge external conditions that might affect performance. These components collectively enable a holistic view of athlete performance metrics, crucial for both training optimization and injury prevention.

Layer Two: Edge Computing

The edge computing layer employs advanced 5G technology, minimizing data transmission and processing latencies. Multiple IoT gateways are strategically situated within training facilities alongside a dedicated Performance Analysis Gateway for initial data filtering. This layer’s real-time data aggregation allows for immediate insights, significantly enhancing feedback capabilities for athletes and coaches during active training or competition.

Layer Three: Cloud Analytics

Functioning as the system’s cognitive hub, this layer manages the core computational and analytical tasks. A sophisticated database ensures long-term storage while enabling real-time analytics on historical data. By employing advanced machine learning models, this layer not only predicts athlete performance but also identifies patterns in various athletic parameters. The focus remains on scalability and security, facilitating data analysis across multiple teams and programs.

Layer Four: Feedback System

The model culminates in a comprehensive feedback system powered by a user-friendly mobile application. This interface serves as the main portal for all stakeholders—coaches, physiotherapists, nutritionists, and team physicians. It ensures easy access to real-time metrics, analytics, and customized feedback tailored to each user’s role. The app’s capabilities range from interactive dashboards to historical trend analysis, all while maintaining strict data privacy controls.

Components

The effective functioning of the IoT-E-DLM relies on a coordinated ensemble of components that mediate between sensing, transmitting, and computing layers.

IoT Sensors

At the core of this model lies an advanced array of IoT sensors specifically chosen for their ability to capture multifaceted aspects of athlete performance. These sensors are categorized based on their measurement domains, ensuring comprehensive data collection.

• Biomechanical Sensors: The IMUs equipped within this system involve tri-axial accelerometers, gyroscopes, and magnetometers. These devices provide vital insights into motion dynamics, with sampling rates that can reach up to 1000 Hz.

• Physiological Sensors: Utilizing photoplethysmography technology, heart rate sensors function at 100 Hz, delivering real-time monitoring. Other sensors track stress levels and exertion through Galvanic Skin Response (GSR) technology.

• Spatial Tracking Devices: Leveraging dual-frequency GPS technologies, the model includes enhanced indoor positioning capabilities through ultra-wideband (UWB) ranging sensors.

Data collection from these sensors is structured hierarchically, enabling a robust approach to data acquisition and preliminary filtering.

Communication Protocols

A multi-layered communication model ensures the seamless flow of data. Short-range communication primarily uses Bluetooth Low Energy (BLE 5.2), while medium-range communication is facilitated through Wi-Fi 6.

The integration of 5G technology is paramount, creating dedicated slices for varied data types to enhance real-time efficiency. For transport layer communication, a hybrid approach utilizing TCP and UDP ensures timely data delivery tailored to the urgency of different sensor readings.

Cloud Infrastructure

Deployed on the Google Cloud Platform, the AP monitoring system’s architecture boasts a distributed model composed of data ingestion, processing, and storage layers.

• Data Ingestion Layer: Stream-based architecture allows for efficient data handling, resolving potential buffering issues during intensive training sessions. The implementation can maintain throughputs of up to 1 million events per second.

• Processing Layer: The real-time processing pipeline ensures that latency remains under 100 ms, integrating deep learning models for performance predictions efficiently.

• Storage Layer: Utilizing a multi-tier structure, real-time databases manage immediate data needs while long-term analytics are facilitated via big data approaches, ensuring scalability and data integrity.

Proposed TCN + BiLSTM + Attention Mechanism for AP Prediction

A pivotal aspect of the IoT-E-DLM is its innovative model, which integrates Temporal Convolutional Networks (TCN), Bidirectional Long Short-Term Memory (BiLSTM) networks, and an Attention mechanism.

TCN Module

The TCN processes the input data, extracting multi-scale temporal features from intricate time-series data captured by the sensors. Using causal convolution, it maintains temporal ordering, growing receptive fields exponentially while preserving input relationships.

The architecture utilizes multiple parallel convolutional layers, each with varying kernel sizes to effectively capture both short- and long-term patterns vital for predicting athletic performance metrics.

BiLSTM Module

The subsequent step involves the BiLSTM, which enhances the model’s ability to understand sequential relationships by processing data both forward and backward. This bidirectionality captures comprehensive context, enabling better recognition of trends and anomalies within athletic data.

Attention Mechanism

This additional dimension allows the model to focus dynamically on the most pertinent features and time steps, enhancing its interpretability. It quantifies the significance of each component within the input sequence, ultimately leading to a refined and contextually aware prediction.

Feedback Mechanism

The final piece of this intricate puzzle is the feedback mechanism, which is visually represented through a specialized app interface for athletes. This app not only displays key performance metrics but also integrates detailed technical analysis into an accessible format.

For example, a javelin throw athlete can view real-time analytics of their throw, complete with visual representations of joint angles, distances thrown, and release speeds. Such interactive features enable prompt adjustments during training and improve overall performance optimization.

Through innovative data analysis and a user-centric interface, the IoT-E-DLM model stands to revolutionize athlete performance monitoring and enhance training outcomes on multiple levels.
