Transforming Free-Space Optical Encoders with Nanophotonics

Reducing Size and Complexity

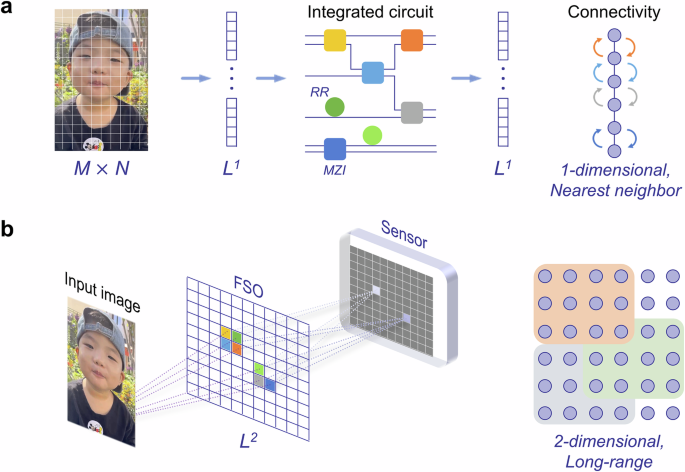

Free-space optical (FSO) encoders have traditionally relied on discrete macroscopic optics such as lenses, mirrors, and polarizers, which often led to large, complex systems that were limited in their functionalities. These conventional setups often utilize Spatial Light Modulators (SLMs) and 4f-systems, making them cumbersome and susceptible to misalignment due to the numerous optical components involved. However, emerging nanophotonic structures, particularly metasurfaces—thin layers of material that can manipulate light at subwavelength scales—hold great potential for creating more compact and multifunctional systems.

The flexibility offered by metasurfaces allows for significant miniaturization of optical components without sacrificing the performance of FSO encoders. These devices can be engineered to achieve a wide range of functionalities, paving the way for novel designs that can operate efficiently in practical applications.

Physical Nonlinearity and Activation

The integration of photon-photon interactions in optical encoders remains challenging primarily due to a lack of nonlinearity, which is crucial for the operation of deep artificial neural networks (ANNs). Traditional optical systems often fall short in providing the nonlinear activation needed for advanced computation tasks. Researchers are exploring various strategies to introduce optical nonlinearity through engineered light-matter interactions or by harnessing multiple acquisition techniques involving scattering events.

In this context, the notion of reconfigurability in FSO encoders becomes increasingly significant. While SLMs provide a level of reconfigurability in traditional systems, metasurfaces typically lack this feature post-fabrication. Current research aims to overcome these hurdles, investigating strategies to create dynamic, reconfigurable metasurfaces that can adapt to various functional requirements, thereby enhancing their capabilities in optical encoders.

Hybrid Optical/Digital Systems

Researchers are also addressing the challenges of nonlinearity and reconfigurability on the digital back end, developing hybrid optical/digital architectures. In these setups, a static optical front end performs linear operations, while subsequent nonlinear and reconfigurable processes are handled digitally. This approach enables the synergy between the speed of optical processing and the flexibility of digital computation, allowing for more efficient implementations in tasks like computer vision.

Classification Criteria for FSO Encoders

Classifying FSO encoders based on various criteria helps reveal their capabilities. Categories include:

1. Contributions of Digital Computation: Some encoders require only simple operations, like subtraction, while others necessitate complex processing akin to neural networks.
2. Adaptability to Conventional Optical Systems: Encoders can either be integrated into existing systems or replace specific optical components.
3. Encoded Design Framework: This addresses how effectively the encoder is designed based on physical principles, digital operations, or a cohesive combination of both.

Such classifications provide insightful perspectives on how these systems can be optimized for diverse applications, including real-time image processing.

Design Frameworks for Optical Systems

The design of optical systems can typically be categorized into three frameworks:

1. Intuitive Design: Harnessing established physical principles to achieve desired functionalities, such as using Fano resonance for edge detection.
2. Inverse Design: Tailored convolutional operations can be accomplished by engineering point spread functions (PSFs) to align with convolutional kernels.
3. End-to-End Design: This innovative approach integrates both optical front ends and digital back ends in a single framework, maximizing performance through direct optimization.

Traditional Bulk Optics

Many FSO encoders draw inspiration from the convolutional nature of optical imaging systems under incoherent light. The 4f-system, a traditional architecture that manipulates the Fourier domain, serves as a foundation for many bulk optical designs. Here, the object is imaged onto the Fourier plane, where masks or SLMs perform convolutional operations, which are then inverse Fourier transformed for the final output.

However, while effective, these systems can be bulky and inefficient. There’s a pressing need to transition from these traditional architectures to more compact and agile systems that can allow a combination of linear and nonlinear functionalities.

Transition to Compact Metasurfaces

With the advent of metasurfaces, the optical landscape is rapidly changing. Their extensive degrees of freedom enable a multitude of new applications, including real-time image processing. Various optimization methodologies, including adjoint optimization and differentiable photonic simulators, are being utilized to fabricate highly functional metasurfaces. The shift to compact, flat optics translates to significant advantages in terms of weight and form factor, making them highly compatible with modern optical setups.

Challenges in Nonlinearity and Reconfigurability

A significant challenge facing metasurfaces relates to their reconfigurability. Most metasurfaces are electrically or optically static post-fabrication, limiting their adaptability. Innovative solutions, including dynamic beam steering and the utilization of phase-change materials, are being developed to introduce active tunability into these systems.

While electro-optical modulation can provide rapid reconfigurability, it often incurs substantial energy costs. Conversely, passive metasurfaces would significantly lower energy consumption but would inherently sacrifice flexibility and responsiveness while performing tasks.

Innovative Approaches to Nonlinear Activation

The hurdles faced by traditional optical systems regarding nonlinearity can be mitigated through various innovative platforms. Some emerging approaches involve utilizing ferroelectric films and photorefractive materials, which offer novel non-linear activation functions. These methods demonstrate the potential for achieving functional outputs that can effectively perform tasks typical in deep learning environments.

Despite advances in nonlinear techniques, achieving effective nonlinearity in optical systems remains a complex challenge. The ability to perform all nonlinear activations in parallel while maintaining the speed advantages associated with linear operations is essential for harnessing the full power of optical systems in computer vision.

Various Platforms for Nonlinear Activation

Research has identified several promising non-linear platforms. For instance, exciton-polariton platforms exhibit energy-efficient nonlinear activation, while saturable absorbers demonstrate functionality with atomic vapor cells and quantum dots. Other techniques include using optical image intensifiers to introduce nonlinearity, enabling signal regeneration and creating systems that can cascade multiple layers for more complexity and accuracy.

In essence, achieving a high-performance optical neural network hinges on employing various nonlinear optical platforms to create functional architectures that can rival conventional electronic systems in both speed and accuracy.

Conclusion

The journey of transforming FSO encoders through nanophotonics and metasurfaces is just beginning. As researchers unravel the complexities of optical nonlinearity and develop reconfigurable systems, the future of optical computing promises to be not only compact and efficient but also highly functional in answering the demands of modern computational tasks, especially in the burgeoning field of computer vision. The synthesis of optical and digital functionalities is likely to reshape how we think about information processing in the photonic domain, paving the way for innovative applications that leverage the unique properties of light.
