Data Augmentation Approach to Enable Deep Learning Analyses: Exploring Nucleotide Sequence Datasets

Introduction to Data Augmentation in Genomics

In the realm of deep learning, having access to abundant and diverse datasets is crucial. However, challenges often arise, especially in genomic studies where the representation of certain genes may be limited. A novel data augmentation strategy has emerged to combat this issue, allowing researchers to generate diverse and robust datasets without altering the inherent data. This article delves into how augmenting nucleotide sequences can enhance deep learning analyses, particularly in genomics.

A Novel Augmentation Strategy

The innovative augmentation approach involves decomposing 300-nucleotide gene sequences into overlapping k-mers—subsequences of a specified length, here set at 40 nucleotides. By implementing a variable overlap range of 5 to 20 nucleotides, the method ensures that each k-mer shares a minimum of 15 consecutive nucleotides with at least one other k-mer. This unique strategy focuses on maximizing data diversity while preserving the structural integrity of the original sequences.

Visual Representation of the Augmentation Process

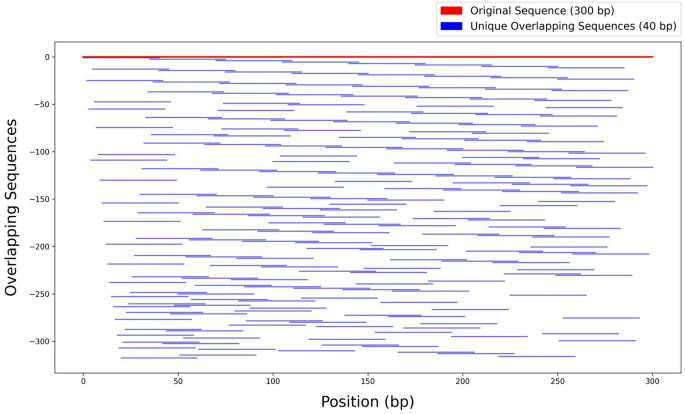

Fig. 1 presents a graphical representation of the augmentation process. It shows a single original sequence, highlighted by a red line, alongside its corresponding overlapping subsequences indicated by blue lines. The visualization emphasizes the complexities introduced by variable overlaps while demonstrating the overarching structure and relationships among subsequences.

Data Integrity and Diversity

An essential aspect of the augmentation method is the conservation of significant regions within the sequences. In the current model, 50% to 87.5% of each sequence is maintained as invariant. This design helps to emphasize the meaningful differences among subsequences, thereby enhancing their utility for effective model training. Conversely, the remaining portion (12.5% to 50%) is treated as variable, introducing diversity and enriching the dataset. As a result, each original sequence can yield up to 261 subsequences, leading to an impressive dataset expansion—translating a mere 100 sequences from the chloroplast genome of Chlamydomonas reinhardtii into 26,100 subsequences.

Implementing Augmentation Across Various Genomic Datasets

The augmentation strategy has been successfully employed on sequence datasets from eight different chloroplast genomes, including other organisms like C. vulgaris, A. thaliana, and Z. mays. This diversity provided a broad foundation for testing the effectiveness of deep learning models using the augmented data.

Impact on CNN-LSTM Model Performance

The hybrid CNN-LSTM model was rigorously evaluated on multiple genome datasets, comparing the outcomes of model training with and without data augmentation. The initial performance on non-augmented data revealed limited efficacy, with no measurable accuracy across all tested genomes. In stark contrast, the addition of data augmentation resulted in significant enhancements in all datasets. For instance, the model achieved an accuracy of 97.66% for A. thaliana, showcasing its ability to generalize well across both higher plants and algal genomes.

Statistical Validation of Model Performance

Statistical analyses further underpin the robustness of the augmented approach. The average test accuracy across various datasets highlighted distinct improvements, with low error rates among genomes like C. vulgaris (0.25%) and O. sativa (0.33%). It becomes clear that data augmentation equips the hybrid model with a stronger foundation for reliable predictions.

Training and Validation Metrics

The training and validation processes demonstrated a lack of overfitting with the augmented data. For instance, in the C. reinhardtii dataset, the training accuracy surged to 97.13%, with a minimal training loss of 0.0641. Validation metrics validated this performance, achieving an accuracy of 96.27% alongside a low validation loss as well.

Advanced Analysis Techniques

To quantify the efficiency of the data augmentation approach further, several analyses including precision-recall curves, correlation analysis, and feature importance assessments were conducted.

Precision-Recall and AUC Evaluation

Precision-recall curves showcased a consistent trend of improvement in average area under the curve (AUC) scores with data augmentation. For example, the model recorded an astonishing AUC of 0.991 for the A. thaliana dataset when augmentation was applied. A statistical assessment confirmed that differences in AUC scores were significant, further advocating for the utility of the augmentation method.

Correlation Analysis of Predictions

Employing Pearson correlation coefficients revealed a strong positive relationship between model predictions and actual experimental data when using augmented datasets. For instance, the hybrid model reached a correlation coefficient of 0.98 with the C. reinhardtii data, starkly better than the 0.00 correlation observed without augmentation.

Feature Importance Insights

Using SHAP (SHapley Additive exPlanations), the analysis illuminated influential features contributing to the model’s predictive accuracy. Interesting interactions between nucleotide positions provided insights into the biological relevance embedded within the k-mers, further demonstrating the potential of augmented datasets for nuanced genomic analyses.

Expanding Beyond Nucleotide Sequences

This augmentation strategy is not limited to nucleotide sequences; it has also been applied to protein datasets. The protein sequences present unique challenges, including a lack of sufficient representative data and variability in coding sequences (CDS) lengths. As protein datasets encountered imbalances, the augmentation technique efficiently addressed these limitations—boosting performance metrics significantly.

Evaluation of Model Performance on Protein Datasets

Across various genomes, models applied to protein datasets with data augmentation showed remarkable performance improvements. The macro precision, recall, and F1 scores consistently ranked high, underscoring the success of the augmentation strategy in enhancing not only nucleotides but protein sequences as well.

Confusion Matrix and Classification Performance

The confusion matrix provided a clear representation of the model’s classification accuracy across protein sequences within datasets. High values along the diagonal indicated successful predictions, while only a few non-diagonal values reflected occasional misclassifications—highlighting the model’s overall predictive reliability.

Precision-Recall and ROC Curves for Protein Datasets

The model’s ability to classify protein datasets was further illustrated through precision-recall and ROC curve analyses, cementing its performance through high AUC scores of 1.00. These results validate the robustness of the hybrid model, emphasizing the advantages gained through the data augmentation methods.

Unsupervised Analysis of Limited Genomic Sequences

In addition to supervised learning applications, the proposed augmentation approach aids in generating features for unsupervised analyses. By transforming each 300-nucleotide sequence into a high-dimensional k-mer feature set, researchers can capture genetic similarities between sequences and derive biologically relevant relationships without needing labeled data.

K-mer Analysis and Clustering

The k-mer extraction method produced substantial data on sequence similarities, effectively establishing a distance matrix that aids clustering efforts. This enables the identification of sequence relationships, offering insights into the genetic landscape even in the absence of large datasets.

Biological Significance of Clusters

Through clustering analyses based on shared k-mers, meaningful groupings emerged that hint at evolutionary relationships and potential functional similarities among sequences. Such revelations highlight the versatility of the k-mer method in unraveling the complexities of genomic data.

Closing Thoughts

Overall, the adaptation of data augmentation to nucleotide and protein sequence datasets has proven to be a game changer in genomic studies. By effectively addressing challenges related to limited data availability, researchers can now tap into the full potential of deep learning applications in genomics. The strategic implementation of overlapping subsequences and shared motifs not only enhances model performance but also preserves the integrity of the sequences being analyzed. Through both supervised and unsupervised approaches, the future of genomic data analysis is brighter than ever, fueled by innovative augmentation strategies and the robust capacity of hybrid models like CNN-LSTM.
