“Optimizing Lithofacies Prediction in the Lower Goru Formation Using Diverse Machine Learning Algorithms”
Optimizing Lithofacies Prediction in the Lower Goru Formation Using Diverse Machine Learning Algorithms
Core Concept and Importance
Lithofacies prediction refers to the classification of sedimentary rock types based on their physical and chemical characteristics, and it is crucial in the oil and gas industry for effective resource exploration and exploitation. In the context of the Lower Goru Formation in the Lower Indus Basin, accurate lithofacies prediction can significantly enhance oil recovery rates and optimize well placement by understanding subsurface geology more comprehensively. With the rise of machine learning (ML) algorithms, the approach to lithofacies classification has evolved, allowing for more precise predictions than traditional models.
Key Variables in Lithofacies Prediction
The primary variables in lithofacies prediction include well log data, such as gamma-ray, density, and sonic logs. These logs provide insights into the subsurface rock properties. For example, gamma-ray logs can indicate the presence of shale versus sand, while density logs help discern variations in lithology density. Understanding these variables is paramount to creating effective machine learning models that analyze complex geological data sets.
Step-by-Step Process of Lithofacies Prediction
The lithofacies prediction process generally begins with data collection, where well log data from exploratory wells are gathered. Next, the data undergoes preprocessing to remove noise and handle missing values. The refined dataset is then used to train various machine learning algorithms, such as Support Vector Machine (SVM), Random Forest (RF), and Artificial Neural Networks (ANN). Subsequently, the models are evaluated using metrics like accuracy and F1 score to measure their predictive performance. Finally, the best-performing model is chosen for deployment, guided by the validation results.
Practical Example: The Lower Goru Formation

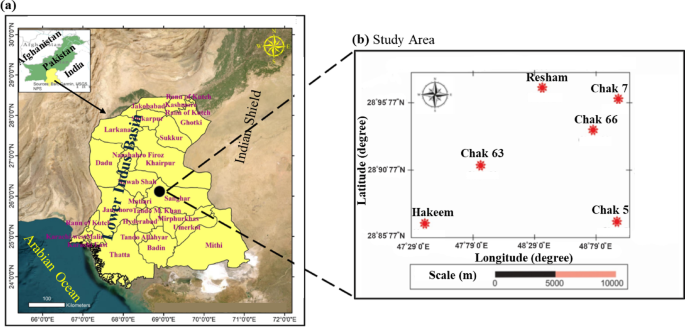

In the Lower Goru Formation, researchers employed multiple machine learning algorithms to predict lithofacies within wells Chak 7 and Hakeem. For instance, the Random Forest algorithm outperformed the others, achieving up to 96% accuracy in predicting lithotypes such as sand and shale. This contrasts sharply with traditional methods that often fail to capture complex lithological patterns, reinforcing the advantage of machine learning in geological contexts.
Common Pitfalls and Their Solutions
One significant challenge in lithofacies prediction is the misclassification of similar facies, such as sandy shale and shaly sand. This often happens due to overlapping physical characteristics, leading to lower accuracy rates. One solution to this issue is implementing additional preprocessing steps, such as dimensionality reduction techniques, to improve the clarity of features extracted from well logs. Also, hyperparameter tuning of the machine learning algorithms can optimize performance and reduce these misclassifications.
Tools and Frameworks Utilized
Various machine learning libraries, such as Scikit-learn and TensorFlow, are commonly used in the lithofacies classification process. For instance, the Random Forest algorithm is recognized for its robustness, especially in handling large and complex data sets typical in geological applications. However, it requires more computational resources than simpler algorithms, prompting the need for well-equipped computational systems.
Variations and Trade-offs of Algorithms
In lithofacies prediction, algorithms like SVM excel at capturing non-linear relationships, while Decision Trees (DT) offer transparency in model interpretation. Random Forest, a more robust ensemble of Decision Trees, usually achieves higher accuracy but at the cost of interpretability. The trade-off here is between the model’s performance and its transparency, which is vital for geoscientists who rely on clear interpretability.
Feature Importance in Lithofacies Models
Analyzing feature importance provides insights into which variables most significantly impact lithofacies predictions. For instance, gamma-ray and density logs typically rank as the most critical features across various models. Understanding these relationships informs data collection strategies, ensuring that the most impactful logs are prioritized during exploration.
Receiver Operating Characteristic (ROC) Analysis
ROC curves serve as valuable tools for assessing the predictive performance of machine learning models. Analyzing true positive rates against false positive rates helps in understanding model behavior across different lithology types. For example, Random Forest models often display an AUC value above 0.95, indicating high predictive capability, while simpler models generally yield lower AUC scores.
Challenges of Data Quality and Computational Needs
Poor quality data or noise can significantly hinder the performance of machine learning models, particularly in predicting nuanced geological features. Ensuring data accuracy through robust collection protocols and conducting regular audits can mitigate these challenges. Moreover, computational needs increase with the complexity of the models, necessitating adequate hardware and software resources.
Comparative Analysis with Existing Literature
Recent studies indicate a growing trend of utilizing machine learning for lithofacies prediction. For example, comparisons with Banerjee et al. (2024) and Merembayev et al. (2021) show the effective application of Random Forest and Decision Trees in various geological settings. Such findings from the literature validate the efficacy of machine learning models in handling high-dimensional geological data.
Future Research and Industry Recommendations
Future work in lithofacies prediction should focus on refining existing models and exploring hybrid approaches that integrate multiple algorithm strengths. Collaborating with geophysical data sources, such as seismic data, may provide deeper insights and enhance predictive capabilities. Investment in automated workflows leveraging machine learning can lead to quicker, more cost-effective lithofacies interpretations, thereby improving operational efficiency in the oil and gas industry. Expanding validation efforts across diverse datasets will further solidify the reliability of machine learning approaches in varying geological contexts.
