Advancements in Brain-Computer Interfaces: A Deep Dive into a Hybrid CNN-LSTM Approach

Methodological Overview

This study introduces a sophisticated architecture within a Brain-Computer Interface (BCI) system aimed at enhancing the classification of motor imagery tasks through improved interpretation of brain signals related to imagined movements.

The methodology encompasses a thorough exploration of the dataset, pre-processing techniques, feature extraction methods, and classification algorithms employed, presenting a clear roadmap of the experimental design and execution.

Proposed Algorithm

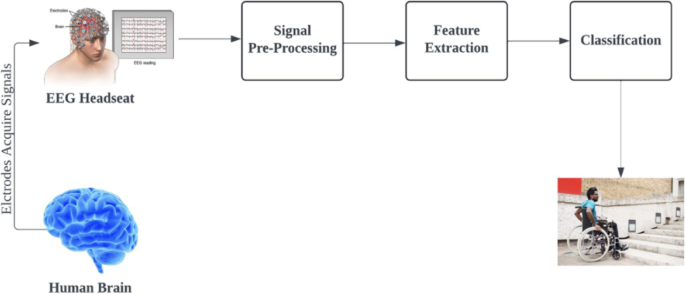

The authors have developed a groundbreaking hybrid deep learning model that combines Convolutional Neural Networks (CNNs) with Long Short-Term Memory (LSTM) networks. This unique integration is strategically designed to harness the strengths of both models: the CNN’s remarkable proficiency in extracting spatial features from multi-channel EEG data, and the LSTM’s exceptional capability in capturing temporal dependencies. This combination is exemplified in Fig. 3, which outlines the proposed system’s workflow for processing EEG signals.

Experiment Execution

To establish this hybrid CNN-LSTM model, the research diverged from traditional machine learning algorithms—such as Random Forest (RF) and Support Vector Classifier (SVC)—which, although effective as benchmarks in prior BCI work, often fall short in fully utilizing the complex temporal and spatial patterns intrinsic to EEG data.

The hybrid model capitalizes on CNN’s potential to discern spatial patterns by analyzing the EEG electrode array, while simultaneously leveraging LSTM’s construction to model the temporal sequences of brain activities during motor imagery tasks.

Model Selection and Performance

This study meticulously evaluated various deep learning architectures. Observably, while both standalone CNNs and LSTMs exhibited respectable accuracy, their fusion into a hybrid model yielded dramatically enhanced performance. This model adeptly captured the complete spectrum of EEG signal characteristics—culminating in a marked improvement in classification accuracy, making it well-aligned for BCI applications.

To address data limitations, which are prevalent in EEG studies, the investigation also incorporated Generative Adversarial Networks (GANs) to augment the dataset with synthetic EEG signals. This strategic augmentation, designed to mimic real EEG signal distributions, effectively broadens the training data, ensuring superior model generalization and performance in real-world applications.

The hybrid CNN-LSTM network architecture comprises two pivotal components: a CNN module focused on extracting diverse spatial features and an LSTM module tasked with grasping the essential temporal dynamics for precise classification. Integrating GAN-generated data further boosts the robustness and reliability of this model, leading to notable classification performance exceeding that of traditional machine learning models and standalone deep learning architectures.

Dataset Description

The study utilizes the EEG Motor Movement/Imagery Dataset (version 1.0.0) available on PhysioNet. Captured via the BCI2000 system, the dataset encompasses 64-channel EEG signals recorded according to the international 10–10 system at a sampling rate of 160 Hz. Originally composed of data from 109 participants, six were omitted due to annotation errors, resulting in a final cohort of 103 subjects.

Each participant engaged in 14 runs, where the initial two serves as baseline measurements—one with eyes open and the other closed—lasting one minute each. The following tasks involved four different actions, each repeated thrice.

• Task 1: Physically opening and closing fists in response to on-screen targets.
• Task 2: Imagining performing the actions outlined in Task 1.
• Task 3: Alternating fist and feet movements depending on target locations.
• Task 4: Imagining actions described in Task 3.

The rich dataset, which collects both real and imagined movements, is augmented by annotated markers indicating movement onsets and rest periods.

Pre-processing

Raw EEG data quality significantly impacts BCI system performance. Given the noisy nature of EEG signals—often polluted with artifacts like eye blinks and muscle movements—the pre-processing stage is crucial. Traditional pre-processing techniques include autoregressive modeling, short-time Fourier transform (STFT), and wavelet transforms.

The research employs a comprehensive pre-processing pipeline consisting of:

1. Normalization: Ensuring uniform scaling of EEG data to prevent bias during modeling.
2. Bandpass Filtering: Isolating relevant frequency ranges (0.5–50 Hz) to enhance signal quality.
3. Spatial Filtering: Using techniques like Common Spatial Patterns (CSP) to maximize class variance.
4. Artifact Removal: Implementing Independent Component Analysis (ICA) to isolate and eliminate non-neural artifacts.

Each of these strategies fortifies the data’s reliability for analysis, mitigates noise, and amplifies the capacities for subsequent statistical performance.

Feature Extraction

Effective feature extraction transforms pre-processed EEG data into informative representations that capture the neural activities linked to motor imagery. The methodologies employed encompass:

1. Wavelet Transform: Ideal for analyzing non-stationary EEG signals by providing both time and frequency data to capture transient events.
2. Riemannian Geometry: Utilizes the intrinsic geometric properties of EEG data, enabling better relationship captures between EEG channels.
3. Principal Component Analysis (PCA): Reduces data dimensionality while preserving the most impactful information.
4. t-SNE: Useful for visualizing high-dimensional data clusters corresponding to varied motor imagery states.

Statistical measures, derived directly from the EEG signal amplitude over specified time windows, provide key insights into the signal’s central tendency and dispersion, essential for understanding the cognitive processes underpinning motor imagery tasks.

Why GANs?

GANs play a pivotal role in EEG signal processing, addressing data scarcity by generating synthetic examples to augment training datasets. Their capacity to capture intricate patterns that may be overlooked by traditional methods enhances feature learning significantly.

In this study, a GAN architecture comprised of a deep convolutional generator and a discriminator was employed. By learning the EEG signal distribution, it generates realistic synthetic examples while ensuring that the model is trained with a more diverse dataset, improving generalization capabilities and classification performance.

Evaluative metrics, including the Fréchet Inception Distance (FID) score, validated the quality of the generated EEG signals. Notably, the inclusion of GAN-augmented data resulted in a 10% accuracy boost and a reduction in overfitting for the hybrid CNN-LSTM model.

Classification Techniques

The classification phase involves categorizing EEG data into defined movement types—such as left-hand and right-hand movements. This study incorporated five machine learning algorithms, two deep learning algorithms, and the proposed hybrid model, bringing about a robust comparative framework for assessing efficacy.

Machine Learning Models Employed

• K-Nearest Neighbors (KNN): A non-parametric algorithm that classifies samples based on nearest neighbors. Its straightforward implementation is counterbalanced by its sensitivity to data noise.

• Support Vector Classifier (SVC): Functions to find the optimal hyperplane that divides datasets by maximizing the margin between classes.

• Random Forest (RF): This ensemble method builds multiple decision trees, showcasing high accuracy, especially on large datasets.

• Logistic Regression (LR): A linear model that estimates probabilities using a logistic function, effective for binary classification scenarios.

• Naive Bayes (NB): A probabilistic classifier based on Bayes’ theorem, noted for its efficiency, despite the simplicity of independence assumptions among predictors.

Deep Learning Models Approached

• Convolutional Neural Networks (CNNs): Excelling in spatial feature extraction from data, particularly adept at recognizing patterns in grid-like information.

• Long Short-Term Memory (LSTM): Effectively captures long-term dependencies in sequential data, specifically designed to circumvent vanishing gradient problems often encountered in RNNs.

Proposed Hybrid Model (CNN + LSTM)

The authors propose a novel CNN-LSTM hybrid model specifically tailored for motor imagery task classification within BCI systems. This architecture takes full advantage of both CNN and LSTM strengths to analyze complex EEG signals corresponding to imagined motor movements.

In addition, continual refinement of convolutional filters and LSTM units revealed optimal configurations for enhancing EEG analysis, leading to superior classification performance when compared against traditional methods.

Conclusion

In capturing the intricate relationship between EEG signal characteristics and motor imagery tasks, this study lays the groundwork for pushing the boundaries of BCI applications. By integrating hybrid architectures, leveraging advanced pre-processing and feature extraction techniques, while addressing data limitations with GANs, the research exemplifies the transformative potential of contemporary machine learning and deep learning approaches in understanding neural activities.
