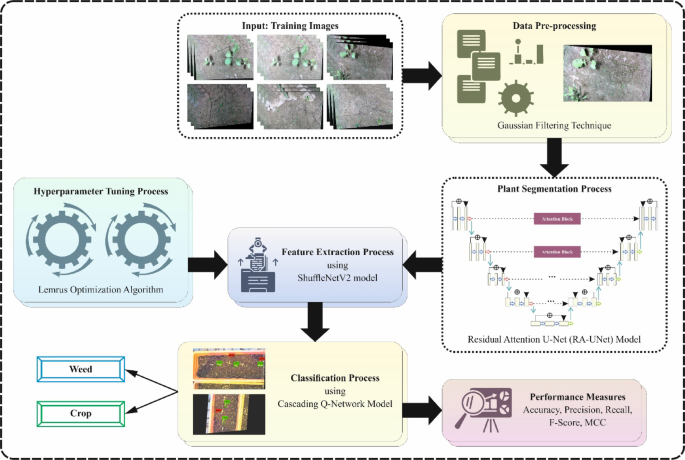

AWRC-DLMLO Method for Weed and Crop Detection
In agricultural technology, precision is key. The AWRC-DLMLO (Adaptive Weed and Crop Recognition with Deep Learning Multi-Layer Optimization) method exemplifies a sophisticated approach to effectively detecting and classifying weeds and crops. This innovative strategy leverages image processing techniques, segmentation, feature extraction through ShuffleNetV2, parameter selection via Lemurs Optimizer Algorithm (LOA), and classification using a Cascading Q-Network (CQN).
Image Preprocessing: The Groundwork for Success
At the core of the AWRC-DLMLO method lies image preprocessing, which initiates the weed and crop recognition process. The first step utilizes Gaussian Filtering (GF) to eliminate unwanted noise from images, ensuring clearer and more distinct features.
This preprocessing technique involves convoluting the image with a Gaussian kernel, effectively blurring the background while preserving critical edges. This results in a more defined difference between crops and weeds, boosting the accuracy of forthcoming classification and segmentation.
GF helps create a robust foundation for subsequent steps, allowing the AWRC-DLMLO method to deliver reliable input data for weed and crop recognition.

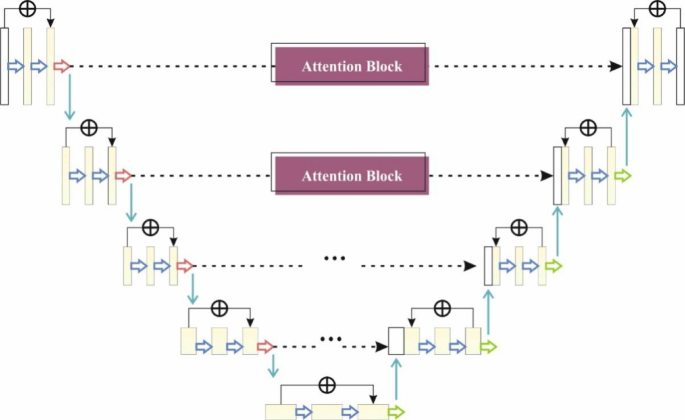

Segmentation: Harnessing the Power of RA-UNet
Following preprocessing, the segmentation process utilizes the Residual Attention U-Net (RA-UNet) model. U-Net’s architecture comprises both decoder and encoder blocks linked through bridge connections at various levels. This framework is essential for merging up-sampling and down-sampling pathways to achieve spatial data.
One of the highlights of the RA-UNet is its soft-attention mechanism. This feature enhances the retention of important characteristics while downplaying less significant details. By emphasizing relevant features, RA-UNet effectively maximizes segmentation performance without imposing heavy computational demands.
The soft-attention gates utilize dual inputs from the encoder and deep network levels, assigning importance to various parts of the imagery. This process allows the model to focus on essential areas, optimizing performance and sensitivity while sidestepping complex computations.

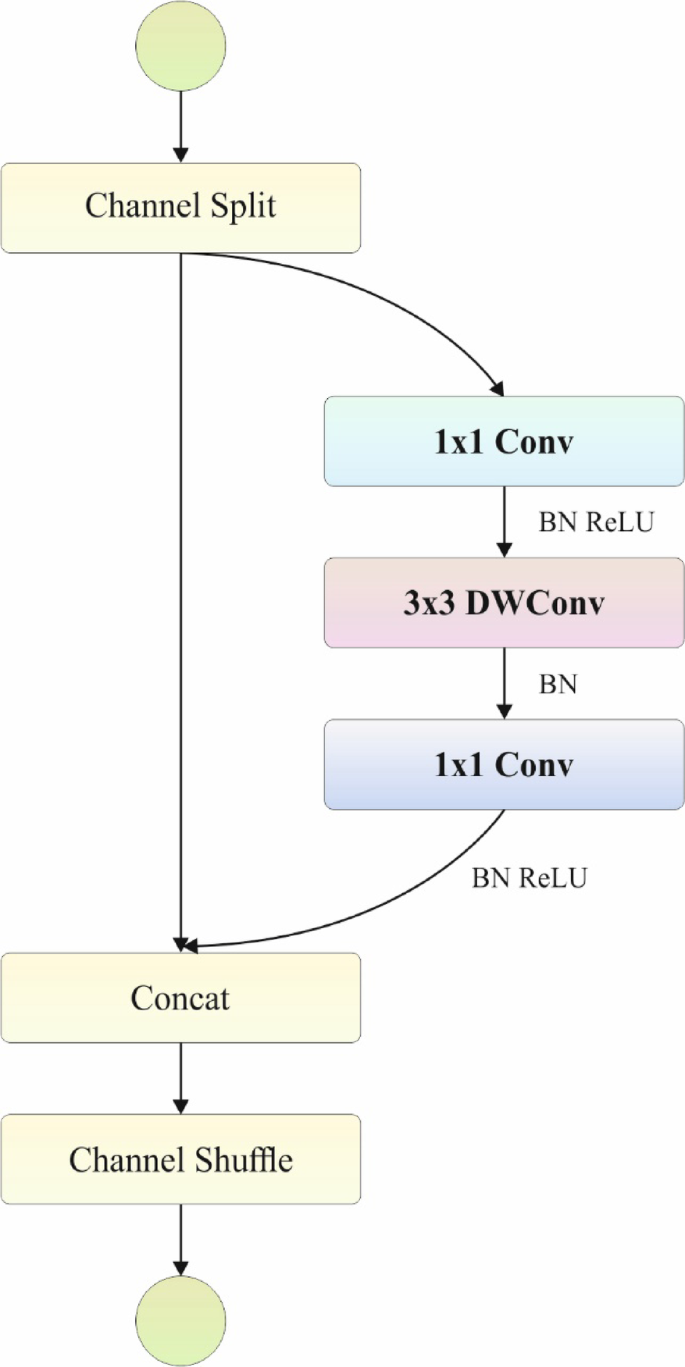

Feature Extraction with ShuffleNetV2
For feature extraction, the AWRC-DLMLO method employs ShuffleNetV2, a lightweight convolutional neural network (CNN) known for its efficiency. This approach utilizes (1\times 1) convolutions to streamline data flow while significantly reducing the need for extensive computational resources.
ShuffleNetV2’s architecture includes two convolutional layers and a fully connected layer, configured into stages with down-sampling units that efficiently process the input. This technique is instrumental in discerning unique features that contribute to accurately classifying crops and weeds, effectively balancing performance with computational efficiency.
Parameter Optimization via Lemurs Optimizer Algorithm (LOA)
Enhancing the performance of the AWRC-DLMLO method is achieved through the Lemurs Optimizer Algorithm (LOA). Inspired by the social behaviors of lemurs, this meta-heuristic optimization strategy is adept at addressing global optimization challenges.
The LOA operates by simulating the movement of a herd of lemurs, leveraging their natural behaviors such as dance-hopping and leaping to explore the solution space. Each potential solution, or "lemur," is evaluated based on its fitness relative to a goal, allowing the algorithm to identify optimal pathways efficiently.
By incorporating LOA, the AWRC-DLMLO method achieves refined tuning of hyperparameters, leading to improved performance during both training and classification.
The Classification Process: Cascading Q-Network
After feature extraction, the AWRC-DLMLO method adopts a Cascading Q-Network (CQN) for the classification stage. This innovative approach utilizes multiple Q-networks, which collaborate to identify optimal crop or weed classifications based on prior trained data.
The CQN structure is characterized by its ability to process a broad range of potential actions, focusing on maximizing the action-value function. By analyzing various features and interactions in the data, the CQN facilitates precise recommendations while efficiently navigating through extensive combinatorial spaces.
The identification of optimal actions is achieved with minimal computational effort thanks to cascading methodologies applied across the network, allowing the system to adaptively refine its classifications over time.
The AWRC-DLMLO method emerges as a powerful solution for agricultural practices, combining advanced image processing, refined segmentation, efficient feature extraction, intelligent parameter optimization, and robust classification techniques. Each component works in harmony, driving significant improvements in weed and crop recognition and ultimately enhancing the efficiency and productivity of agricultural operations.
