“Objective Evaluation of Sunken Upper Eyelids Using Computer Vision”

Objective Evaluation of Sunken Upper Eyelids Using Computer Vision

Core Concept and Its Importance

Sunken upper eyelids—a condition that can lead to a tired appearance—are increasingly being evaluated through advanced techniques in computer vision. This objective assessment is crucial for both aesthetic surgery and medical diagnoses, where traditional methods can be subjective and variable. By employing machine learning models and quantitative metrics, medical practitioners can gain a clearer, data-driven understanding of eyelid morphology, which directly impacts surgical outcomes and patient satisfaction.

Key Components of the Evaluation Framework

The evaluation framework consists of two primary stages: standardized image preprocessing and multidimensional feature extraction. The preprocessing stage assures high-quality, uniform inputs for further analysis. The second stage evaluates these processed images using three specific metrics: Variance of Gray Value (VGV), Structural Similarity Index (SSIM), and Degree of Eyelid Wrinkles (DEW).

For instance, VGV measures luminance variations, SSIM assesses bilateral symmetry, and DEW quantifies skin texture. This layered approach ensures that the morphological features are clinically relevant and sensitive to changes post-surgery.

Step-by-Step Evaluation Process

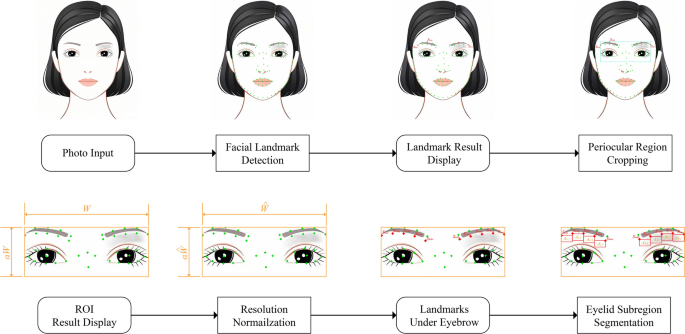

The evaluation begins with image preprocessing. First, facial landmarks are detected using algorithms like OpenCV in combination with the Face++ model. This allows for automated localization of points around the eyes, providing a base for further processing.

Next, a region of interest (ROI) is defined. The eyelid areas are cropped and resized to ensure consistent spatial dimensions. Each hastily-processed ROI is then segmented into four subregions for focused morphological analysis. This structured approach reduces background noise and emphasizes the clinically significant areas for assessment.

Once preprocessing is complete, the framework employs three core metrics to evaluate the extracted features. Each plays a vital role in interpreting post-surgical changes, enabling clearer assessments for both practitioners and patients.

Practical Example: Case of Eyelid Surgery

Take, for example, a patient who underwent upper eyelid surgery to correct sunken eyelids. The preoperative and postoperative images were analyzed within this framework. The VGV metric indicated significant changes in shading, while SSIM highlighted improvements in symmetry between the eyelids. The DEW score also revealed a reduction in skin irregularities post-surgery, confirming the success of the procedure through quantitative measures rather than subjective observations.

Common Pitfalls and Their Solutions

One significant pitfall in computer vision assessments is overfitting—where a machine learning model performs well on training data but poorly on new, unseen data. To avoid this, a repeated stratified k-fold cross-validation approach is employed. This method ensures a robust performance estimate by using a variety of training and validation samples.

Another issue can arise from inconsistent input data quality. Using standardized preprocessing techniques minimizes this risk. By controlling factors like lighting and image resolution, the analysis remains focused on clinically relevant metrics.

Tools and Metrics in Practice

The framework primarily leverages the Support Vector Machine (SVM) for evaluating eyelid conditions. Used widely in medical imaging, SVM has proven effective in distinguishing between normal and sunken eyelids by identifying complex, non-linear patterns in the data. The metrics (VGV, SSIM, DEW) serve as features in training the SVM model, specifically designed for medical assessments where subjective criteria are common.

Yet, while effective, SVM models have their limitations. For example, they require careful tuning of hyperparameters to avoid model instability. Additionally, results can vary significantly based on the choice of features, which must be selected thoughtfully to enhance accuracy.

Variations and Alternatives

While the current method provides robust evaluations, variations exist. For instance, deep learning frameworks like convolutional neural networks could also be employed for feature extraction. While these models can yield higher accuracy, they often require more extensive computational resources and training data.

Another alternative is using simpler models, which may offer faster evaluations at the cost of precision. However, the trade-off is significant, as higher accuracy usually leads to better clinical decision-making.

FAQ

What is the significance of standardized preprocessing in this framework?
Standardized preprocessing ensures consistency across images, minimizing variations caused by lighting or angles, which could affect the accuracy of the analyses performed on eyelid morphology.

How does VGV impact the evaluation process?
Variance of Gray Value reflects luminance differences that can indicate surface shadows. Higher VGV scores often suggest areas of volume loss, which are critical when assessing conditions like sunken eyelids.

Can this framework be applied to other facial features?
Yes, the underlying principles can extend to other facial features, as long as specific metrics appropriate for those features are identified and measured systematically.

What level of training is required to effectively use this system?
Operators must have a foundational understanding of machine learning principles and familiarity with image processing techniques to implement the system effectively and interpret results accurately.
