The Intelligent Design of University Library Lighting Systems

Understanding the Overall Design Scheme

In a modern university library, effective lighting design is crucial, catering to the diverse needs of library users while optimizing energy efficiency. This design considers the mobility patterns of individuals within the space and varies lighting conditions accordingly.

Spatial Division of Library Areas

The library is intelligently segmented into three primary areas:

1. Image Detection Area: This includes study zones and rest areas where focused illumination is essential.
2. Infrared Sensing Area: This encompasses corridors, bookshelves, and elevator vestibules, emphasizing safety and navigation.
3. Other Areas: Comprising restrooms, stairwells, and public halls, these regions demand a different approach due to lower occupancy rates.

This division is vital in tailoring specific lighting solutions to meet the varying requirements of each zone.

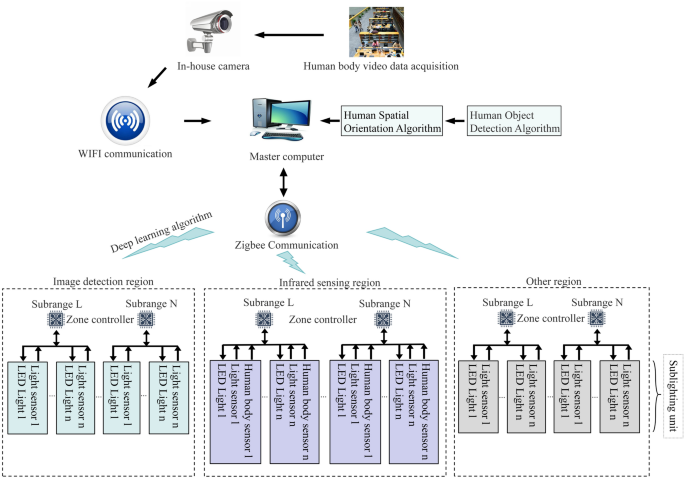

Intelligent Lighting Control Framework

To manage the different lighting needs effectively, each major area is further divided into several sub-regions, each equipped with independent lighting controls. Central to this framework is a microcontroller integrated within regional controllers. Each regional controller governs multiple sub-lighting units, which consist of LED lamps, light sensors, and motion detectors.

An innovative approach involves utilizing deep learning algorithms to process video data collected from cameras in the image detection area. This allows for the precise tracking of human movement and spatial localization within the library, facilitating the system’s dynamic response to real-time occupancy.

Deep Learning in Lighting Control

The light management system employs sophisticated data acquisition and control commands that adapt to the real-time presence and movement of individuals. As the cameras detect human motion, information is transmitted via Zigbee technology to the regional controllers, which can adjust lighting based on both ambient light conditions and human presence.

Real-Time Adjustments for Energy Efficiency

With the integration of light and motion sensors, the system can detect occupancy and ambient light levels at any given time. For instance, when natural light meets or exceeds the target illuminance level of 300 lux, the system can turn off or dim the LED lamps, significantly contributing to energy saving. Conversely, in darker conditions, the lights can automatically brighten to maintain adequate visibility.

This dynamic interaction not only meets the immediate needs of library patrons but also exemplifies energy-conserving principles by responding to natural lighting changes.

Focus on the Image Detection Region

Let’s delve deeper into one of the critical zones, the image detection area, specifically named Sub-Area 1. This area contains nine lighting units, all modulated by a singular area controller based on the aforementioned principles.

Structure and Control Scheme

In Sub-Area 1, the floor plan is meticulously designed to maximize efficiency in lighting control. The luminaire units incorporate LED lights alongside real-time light sensors. When a camera recognizes a patron within the detection range, the lighting system assesses the current light conditions. If ambient light falls below the predetermined threshold of 300 lux, the system activates additional lighting.

This arrangement provides a framework where user comfort is prioritized while simultaneously ensuring optimal energy use through PWM (Pulse Width Modulation) dimming technology, which tactfully manipulates light outputs based on real-time feedback.

Advanced Algorithms for Human Target Detection

Optimizing YOLOv5 for Effective Detection

The lighting system’s performance hinges on the dual algorithms employed: a targeted detection algorithm based on an improved version of YOLOv5, and a subsequent multilayer perceptron (MLP) designed for human spatial localization. The YOLOv5 model, known for its real-time processing ability, undergoes enhancements that boost its performance without excessively increasing the computational load.

Enhancements in Backbone Network

By integrating coordinate attention mechanisms, the model gains the ability to focus more accurately on relevant spatial regions, refining the identification process. This improvement ensures high detection efficacy while maintaining rapid processing rates—crucial in a dynamic environment like a library.

Flexible Detection Layer Augmentation

To further enhance detection accuracy, the YOLOv5 structure utilizes multiple detection scales. This multi-layered approach allows the model to identify targets of varying sizes effectively. By augmenting the original architecture with depth-separable convolutions, the system reduces computational load, paving the way for quicker, more efficient operations.

The Role of Loss Function Optimization

In machine learning implementations like YOLOv5, the loss function plays a pivotal role in enhancing model performance. Traditional bounding box predictions can sometimes lack precision, prompting the introduction of EIoU_loss—a more refined approach that amplifies convergence speeds while boosting accuracy.

This loss function not only evaluates overlaps but also accounts for the centroid distances of predicted frames against their ground truths, ensuring that the model aligns closely with physical reality.

Spatial Localization via Multi-Layer Perceptron

Equipped with the outputs from the YOLOv5 detection model, the MLP model maps 2D coordinates captured in real-time to their corresponding 3D library locations. This transformation is essential for determining exactly where individuals are located within the library, further bolstering the lighting control system’s accuracy.

The self-learning capacity of the MLP is heightened through Backpropagation (BP), allowing the model to iteratively improve its predictions based on accumulated data and user interactions.

Control Strategy Execution

The entire lighting system revolves around a robust control strategy that actively responds to human presence in the library. This strategy, illustrated through flowcharts, sets out an efficient communication protocol between detection systems, area controllers, and the overall lighting infrastructure.

1. Initialization: The system sets the stage by preparing all sensors and controls for operation.
2. Real-Time Detection: The human target detection model identifies individuals and localizes their positions.
3. Judgment and Response: Based on the gathered information, the system determines the appropriate lighting actions—whether to keep lights on, dim them, or switch them off.
4. Automated Feedback: Continuous monitoring ensures that the lighting adjustments remain appropriate to prevailing conditions.

Through these interconnected processes, the intelligent lighting system in the university library embodies a forward-thinking approach, creating an inviting and conducive atmosphere for study while exemplifying sustainability.
