Design of cGAN-FRT Framework

The world of predictive modeling has seen remarkable advancements, particularly with frameworks designed to bridge the gaps in understanding complex systems. One such innovation is the cGAN-FRT framework, explicitly tailored for predicting 3D local reaction rates from 2D images. This framework addresses several challenges, particularly identifying key reaction regions for reactive transport and overcoming geometric diversity issues in structure-property relationships.

Overview of cGAN-FRT Framework

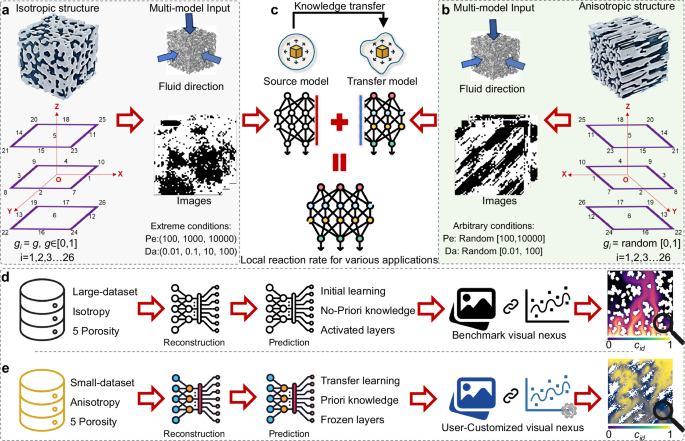

At the core of the cGAN-FRT framework are two generative networks: Generator 1 and Generator 2. These components work in tandem through two critical steps: 3D reconstruction and prediction. The first step utilizes lateral images of a porous catalyst as input, producing a 3D reconstructed model. Following this, the second step applies reactive information, inflow direction, and slices of the reconstructed model to derive slices of the normalized concentration field, denoted as ( c{id} ). This normalized concentration can subsequently be transformed into local reaction rates and the normalized effective reaction rate ( R{norm} ), as outlined in specific equations.

3D Reconstruction and Prediction Steps

In the reconstruction step, Generator 1 plays a pivotal role. The input consists of lateral images of the porous catalyst, which are then processed to yield a detailed 3D structure. This involves analyzing the spatial variability and essential features of the model, which are crucial for the ongoing predictions.

Generator 2, the next phase, leverages the reconstructed model to predict the reactive information using various inputs, including inflow directions. It effectively converts the raw data into a normalized concentration field. The mathematical and computational underpinnings of this transition are depicted in the equations referenced in the original documentation.

Characterizing Reactive Information

The reactive information is captured using dimensionless parameters: the Damköhler number (Da) and the Péclet number (Pe). These two metrics convey vital aspects of reactive transport. Da signifies the relationship between fluid-solid reaction rates and solute diffusion rates, while Pe encompasses the balance between convective transport and diffusion rates. The inflow and outflow faces of the structure correspond to the left and right sides of the catalyst, respectively.

For training the generative networks, a discriminative network is employed concurrently for each generator. Each pair of Generator and Discriminator constitutes a conditional Generative Adversarial Network (cGAN) module, underscoring the collaborative learning process of the framework.

Transfer Learning Strategy

Recognizing the intricacies of reactive transport, the cGAN-FRT framework incorporates a robust transfer learning strategy. Reactive transport is categorized into isotropic cases with specific reaction modes (source tasks) and anisotropic cases with arbitrary modes (transfer tasks). Such classification allows the extraction of fundamental structure-property relationships free from the interference of structural anisotropy. This enables fine-tuning of transfer models specific to various anisotropic structures using minimal datasets.

To regulate structural anisotropy, the framework employs the two-phase quartet structure generation set (QSGS) method. This approach constructs porous structures defined by parameters such as porosity ( \epsilon ), core distribution probability ( c{d} ), and growth probability across multiple directions. The dual processes—base and custom—further enhance the modeling capabilities. The base process involves training source models on datasets, while the custom process adjusts individual ( g{i} ) values to generate transfer datasets for specific applications.

Insights through Pre-training Performance

Pre-training serves as a cornerstone for the cGAN-FRT framework’s overall efficacy. Both Generators 1 and 2 undergo extensive training, with analyses focusing on predictive precision, training loss, and attention capabilities. The initial observations reveal that both generators demonstrate coherent training patterns, with consistent declines in training loss as they learn to capture essential features progressively.

Generator 1, for instance, achieves a remarkable training loss reduction early in its training phase, while Generator 2’s loss stabilizes after a more prolonged training period. These differences highlight the unique learning dynamics of each component while reinforcing the framework’s integrity.

Transfer Learning Performance and Predictions

The transfer training performance post-implementation of the FRT strategy reveals impressive results. With controlled layers frozen in the transfer model, the fine-tuning enhances performance significantly. This adjustment not only demonstrates the model’s adaptability but also its proficiency across varying conditions. Upon evaluation, the transfer model achieves substantial predictive accuracy, further validating the effectiveness of the cGAN-FRT framework.

Comparative Assessment with QSFs and Numerical Techniques

A critical aspect of evaluating the cGAN-FRT framework is its performance against other methodologies, like Quantum Structural Features (QSFs) and conventional numerical simulations. This comparison showcases the superior predictive capabilities of cGAN-FRT in capturing the orientation sensitivity of local reaction rates across different porous architectures.

By designing hypothetical structures to test various conditions and observing how each method responds, the cGAN-FRT emerges as a robust solution, particularly in scenarios where existing models struggle to adapt to new variables.

Salient Structural Features and Insights

One of the unique features of the cGAN-FRT framework lies in its ability to visualize specific pore structures contributing to localized reaction rates. By analyzing heat maps generated during the modeling, the framework elucidates the critical flow patterns within porous structures.

Notably, areas of high attention often correlate with specific pore throats and curved channels, suggesting their significant influence on mass transfer dynamics. This observation aligns with principles observed in biological systems where structural designs are optimized for functional efficiency.

Physical Field Synergy and its Implications

Lastly, the insights gleaned from the structural features pave the way for understanding physical field synergies within the context of reactive transport. The framework allows for a nuanced exploration of interdependencies between local flow dynamics and structural configurations, supporting the hypothesis that smaller angles between concentration gradients and fluid flow vectors enhance mass transfer efficacy. This understanding can have profound implications in fields like catalysis and fluid dynamics, where optimizing design for enhanced reaction rates is essential.

By illuminating the intricate relationships between structure, transport dynamics, and reaction rates, the cGAN-FRT framework stands as a transformative tool in materials science, providing insights that could steer future explorations in heterogeneous catalysis and reactive transport systems.

This reorganized and structured article captures the essence of the cGAN-FRT framework, elucidating its components, methodologies, and implications for scientific advancement.
