Understanding the Methodology of Air Pollution Prediction in New Delhi

The realm of predictive modeling for air quality is a captivating intersection of environmental science and advanced computing, particularly as it relates to urban centers plagued by pollution such as New Delhi. This article delves into the comprehensive methodologies employed in research seeking to predict air pollution levels through cutting-edge techniques like Transfer Learning (TL), Long Short-Term Memory (LSTM) networks, and the Multi-Head Attention (MHA) mechanism.

Study Area

The heart of this research unfolds in New Delhi, utilizing a rich dataset that combines critical air pollution metrics, economic indicators, and agricultural data such as field fire occurrences. The focus period spans from September to December between 2012 and 2021. The air quality data is meticulously gathered from five stationary monitoring stations—Anand Vihar, ITO, Mandir Marg, Shadipur, and R.K. Puram. These sites provide valuable metrics including the 24-hour averages of key pollutants like PM₂.5, PM10, CO, NO2, and SO2.

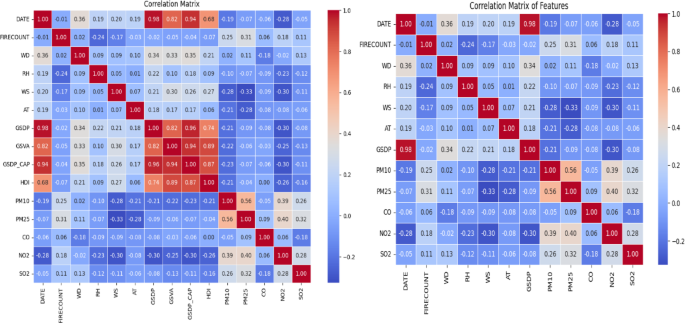

By strategically selecting monitoring stations to cover diverse industrial, residential, and high-traffic zones, the study addresses spatial coverage comprehensively. To complement the air quality data, various meteorological variables (Relative Humidity, Wind Speed, Wind Direction, Solar Radiation, Barometric Pressure, and Air Temperature) were also collected, revealing noteworthy correlations like the negative relationship between Wind Speed and PM₂.5 concentrations.

In the agricultural realm, field fire data sourced from NASA’s VIIRS Active Fire Data enriches the dataset, focusing heavily on the stubble-burning practices prevalent in surrounding regions such as Punjab and Haryana. Although the dataset does not quantify fire intensity, it captures seasonal fire occurrences pertinent to understanding their impact on air quality in Delhi.

Data Exploration and Preprocessing

The process of refining this vast dataset into a manageable and meaningful form is crucial for effective modeling. It encompasses several critical steps:

Missing Values Handling

Initially, the extent of missing data was thoroughly analyzed across all variables, revealing varied levels of absence, particularly among meteorological and pollutant variables. Continuous variables underwent linear interpolation to maintain temporal continuity, while categorical variables utilized mode substitution for imputation. Any features with substantial missing data were excluded to ensure the integrity of the dataset suited advanced temporal modeling.

Removal of Redundant Features

To truly enhance model efficiency, the study examined the relevance of all attributes—discarding economic variables, which displayed a stable range, minimizing overall model complexity, and keeping the focus on more critical environmental factors.

Impact of Fire Incidents on Air Pollution

Temporal analyses through various figures illustrated the significant influence of agricultural fires on air quality. Daily counts of fire incidents revealed distinct seasonal patterns, showcasing peaks associated with agricultural practices, which correspondingly aligned with increased PM₂.5 measurements in Delhi.

Temporal-Enhanced Feature Engineering (TEFE)

Employing TEFE strategies, historical pollutant data was integrated with rolling statistics, thereby elucidating temporal interdependencies in pollution dynamics. A time-series analysis confirmed the necessity for including historical data in the predictive framework.

Stationarity Testing and Treatment

The research examined the time-series nature of collaborative variables, revealing non-stationary behaviors, which were subsequently treated through various techniques like lagged values and rolling statistics, ultimately leading to enhanced feature stability.

Final Dataset Preparation

The culmination of cleansing efforts yielded a dataset comprising 17 select attributes covering essential factors such as pollutant concentrations, biomass burning, meteorological variations, and temporal trends. This prepared dataset underwent min-max normalization for effective feature scaling, ensuring equitable contributions to the final predictive model.

Methods

Armed with a refined dataset, the research employed advanced modeling techniques centered around the principles of Transfer Learning, LSTM architecture, and Multi-Head Attention mechanisms.

Transfer Learning Definition

Transfer Learning operates on the premise of harnessing knowledge from a source domain to enhance outcomes in a target domain, effectively tackling challenges like data scarcity while increasing computational efficiency. In this context, pre-training on larger datasets laid a robust foundation, allowing the model to adapt seamlessly to specific characteristics of New Delhi’s air quality data.

LSTM-Based Architecture

The LSTM model’s design addresses critical challenges in recurrent neural networks, specifically the vanishing gradient problem, enabling efficient learning and retention of long-term dependencies within the extensive time series associated with air quality. The input, forget, and output gates manage information flow, ensuring the accurate modeling of air pollutant dynamics.

Multi-Head Attention Mechanism

Adding a layer of sophistication, the Multi-Head Attention mechanism allows the model to learn diverse connections through multiple representation subspaces, yielding improved insights into relationships across temporal snapshots. This capability is instrumental in understanding the complex interplay of various contributing factors to pollution levels.

Integrated TL-LSTM-MHA Framework

The systematic integration of Transfer Learning, LSTM, and MHA culminates in a powerful predictive model tailored for accurately forecasting air quality. The proposed structure encompasses an LSTM layer, followed by the MHA layer, ensuring both sequence integrity and optimized focus on crucial temporal markers.

In conclusion, this research presents a robust methodology for predicting air pollution levels in New Delhi, utilizing an enriched dataset and advanced machine learning techniques to address one of the city’s pressing environmental challenges. The combined efforts of meticulous data preparation, rigorous feature engineering, and sophisticated modeling strategies yield potent tools for understanding and managing urban air quality effectively.
