Understanding the Methodology in Computational Materials Science
In recent years, the integration of Density Functional Theory (DFT) and machine learning (ML) has transformed the landscape of materials science, allowing for more efficient prediction and optimization of material structures. This article thoroughly explores the sophisticated methodology applied in this domain, covering DFT calculations, the development of machine-learning models, and Bayesian optimization techniques used to identify ground state structures.
DFT Calculations
The foundation of any computational materials study often begins with electronic structure calculations. Here, GPAW (an open-source Python package) is utilized alongside the Atomic Simulation Environment (ASE). For the DFT calculations, the Perdew-Burke-Ernzerhof (PBE) exchange-correlation functional is employed, set with specific computational parameters such as:
- Plane-wave cutoff of 400 eV
- Fermi temperature of 0.1 eV
- K-point sampling employs only the Γ-point for clusters, while a k-point density of 6 Å is applied in periodic systems across all directions.
This approach offers flexibility, as DFT calculations can be tailored based on the type of material and specific features of electronic interactions.
Machine-Learning Model: Fingerprint Representation

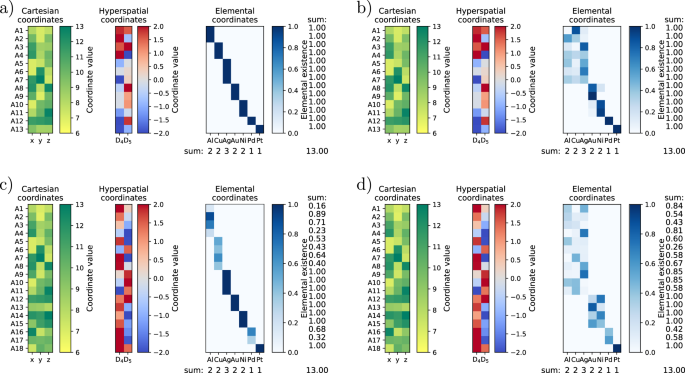

At the heart of the ML model is the fingerprint represented by ( \rho(\mathbf{x}, Q) ). This fingerprint encapsulates the spatial and elemental coordinates of the atoms within a given structure. Specifically, it consists of:
-
Radial part: ( \rho^R(r; \mathbf{x}, Q) ) captures the pairwise distances between atoms.
- Angular part: ( \rho^\alpha(\theta; \mathbf{x}, Q) ) focuses on triplet-wise angles formed by interatomic vectors.
The two components combine to create a comprehensive descriptor of atomic environments. Each atom’s contribution is scaled by scalar values ( q \in [0, 1] ), allowing for fractional representation of chemical identities.
This fingerprinting technique ensures that intricate structural relationships among atoms are captured, forming the basis for predictive modeling in the Gaussian process that follows.
Machine-Learning Model: Gaussian Process
The Gaussian process (GP) is employed to predict both the energy and the forces acting on atoms, encapsulated in the prediction equations:
[
\mu(\mathbf{x}, Q) = \mu_p(\mathbf{x}, Q) + K(\rho[\mathbf{x}, Q], P) C(P, P)^{-1}(y – \mu_p(X))
]
[
\Sigma(\mathbf{x}, Q) = \left{ \tilde{K}(\rho[\mathbf{x}, Q], \rho[\mathbf{x}, Q]) – K(\rho[\mathbf{x}, Q], P) C(P, P)^{-1} K(P, \rho[\mathbf{x}, Q]) \right}^{1/2}
]
The GP leverages a squared exponential kernel to compute covariance, represented functionally:
[
k(\rho_1, \rho_2) = \sigma^2 \exp\left(\frac{-|\rho_1 – \rho_2|^2}{2l^2}\right)
]
Here, ( \sigma^2 ) sets the variance, while ( l ) determines the length scale of correlations between data points, contributing to the model’s robustness and flexibility.
Machine-Learning Model: Hyperparameter Optimization
Successful application of GPs in ML necessitates effective hyperparameter optimization—a process crucial for tailoring the model to specific datasets. This involves maximizing the a posteriori probability ( p(l, \sigma, \chi, \mu_c | y) ) given the training data. Key hyperparameters include:
- The length scale ( l )
- The noise ( \chi )
- The prior mean constant ( \mu_c )
The tuning framework utilizes Bayesian methods to ascertain optimal values while ensuring that structural equivalence in energy predictions remains consistent.
Bayesian Search Algorithm: Overview
The Bayesian search algorithm plays an integral role in exploring the potential energy landscape (PES) of materials. It operates by balancing exploration (searching new configurations) against exploitation (refining known candidates). Potential structures are generated randomly, evaluated through the GP, and the most promising candidates are integrated into the DFT database.
This algorithm mitigates the risk of converging on local minima by:
- Incorporating an acquisition function that encourages diverse searches.
- Disallowing the inclusion of structures that closely resemble those already evaluated in the database.
- Introducing a stochastic element—randomly generating structures that can be directly evaluated when the optimization stalls.
Bayesian Search Algorithm: Random Structure Generation
A key component is the generation of random atomic arrangements. These are created within predefined constraints which ensure that atoms do not overlap or end up excessively separated. The potential used is softer than the rigid repulsive ones generally applied, allowing for a more realistic setup of configurations.
Random structure generation also incorporates guidelines for generating dual-atom catalysts and more complex systems, ensuring that elemental constraints are satisfied while presenting a diverse set of initial configurations for further evaluation.
By harnessing DFT methodologies, machine learning capabilities, and optimized Bayesian searches, significant advances are made in computational materials science, enabling scientists to identify potential new materials in an efficient and effective manner. This innovative approach promises to continue shaping the field, opening up a wealth of possibilities in materials discovery and optimization.
