Exploring the Neuro-TM Diarizer: A Cutting-Edge Approach to Speaker Diarization

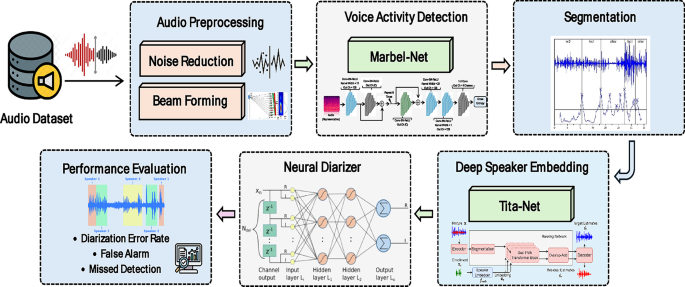

Speaker diarization, the task of partitioning an audio recording into segments according to the speaker identity, has long been a challenge in the field of audio processing. The proposed Neuro-TM Diarizer offers a compelling solution by utilizing a sophisticated combination of neural models—Tita-Net and Marbel-Net—to enhance speaker segmentation and identification accuracy. This innovative system consists of five fundamental steps: audio preprocessing, voice activity detection, segmentation, speaker feature engineering, and neural diarization. Let’s delve into each of these components in detail.

Audio Preprocessing

The journey begins with audio preprocessing, a pivotal stage that refines raw audio signals to improve clarity and make them amenable to thorough analysis. It employs two key techniques: Noise Reduction and Beamforming. Together, they enhance audio quality, thereby laying a solid foundation for accurate speaker identification.

Noise Reduction

Noise Reduction represents a vital step aimed at eliminating unwanted interferences that compromise the integrity of speech signals. This method adapts dynamically to varying noise levels, ensuring robustness in fluctuating acoustic environments. Mathematically, the clean spectrum of the signal is expressed as:

[
s(i,b) = \text{max}(|y(i,b)| – \alpha \cdot |\check{n}(i,b)|, \beta \cdot |y(i,b)|)
]

where (y(i,b)) denotes the noisy signal comprising both noise (n(i,b)) and speech signals (s(i,b)), while (\alpha) and (\beta) are factors that help in controlling the degree of over-subtraction and spectral flooring.

Beamforming

Beamforming utilizes spatial filtering to amplify desired speech signals while minimizing noise from unwanted directions. The mathematical representation of beamforming is given by:

[
b(t) = \sum_{m=1}^{M} w_m x_m(t – T_m)
]

Here, (x_m(t)) is the input signal, (w_m) refers to weight, and (T_m) is the delay associated with the signal coming from microphone (m). This method helps improve the precision of speaker embeddings, essential for effectively tackling complex multi-speaker scenarios.

Visual comparisons between original and processed audio signals, illustrated in Figures 2 and 3, demonstrate the significant effectiveness of these preprocessing techniques. Spectrograms and waveforms reveal remarkable enhancements in audio clarity, validating the need for such a preparatory step.

Voice Activity Detection (VAD)

Following preprocessing, the system employs Voice Activity Detection (VAD) to discern the presence of human speech within an audio signal. This crucial step distinguishes segments containing speech from those characterized by silence or background noise. Implementing VAD using Marbel-Net, which relies on deep learning architectures, enables precise identification of speech regions.

Marble-Net Architecture

Marble-Net comprises convolutional layers that effectively capture both temporal and spectral characteristics. With batch normalization and activation functions like ReLU, Marble-Net excels in enhancing the model’s robustness and performance. Its design allows it to separate voice activity through careful feature extraction, facilitating effective speech segmentation.

Segmentation

Effective segmentation divides the audio stream into discrete segments, usually based on speaker changes or topic transitions. This step is necessary to identify the boundaries between speakers reliably. The proposed system integrates a hybrid approach using Bayesian Information Criterion (BIC) and Gaussian Mixture Models (GMM).

• BIC assists in evaluating the trade-off between model fit and complexity.
• GMM, on the other hand, represents fast acoustic feature distributions for discerning speaker transitions.

Mathematically, BIC can be expressed as:

[
BIC = -2 \cdot \log L + k \cdot \log N
]

where (L) is the likelihood of the model, (k) is the number of parameters, and (N) is the size of the data. This hybrid approach ensures improved accuracy in detecting speaker boundaries while enhancing the overall diarization effectiveness.

Deep Speaker Embedding

The next vital step involves deep speaker embedding, wherein speech signals transform into fixed-dimensional vectors that embody unique speaker voice features. The study employs the Tita-Net deep learning model, specifically designed for this task, to extract rich, informative embeddings.

Tita-Net Model

Tita-Net is notable for its efficiency and scalability, making it suitable for a wide range of applications from low-resource systems to high-performance environments. The embedding extraction process maps input features into a dedicated embedding space, capturing the essence of each speaker’s voice. The mathematical representation for generating the speaker embedding from Tita-Net is as follows:

[
E = f(x; \theta)
]

Here, (x) denotes the mel-spectrogram while (\theta) represents model parameters. This embedding allows for the differentiation between speakers, even when they articulate identical phrases, further enhancing diarization accuracy.

Neural Diarization

Finally, the core function of the Neuro-TM Diarizer is neural diarization, where the system classifies deep speaker embeddings and predicts corresponding speaker time intervals. This employs a fusion of Time-Delay Neural Networks (TDNN) and Long Short-Term Memory (LSTM) networks to harness their respective strengths for efficient diarization.

Hybrid TDNN and LSTM Model

TDNN captures long-range dependencies, while LSTM manages temporal sequences, allowing the model to effectively understand the progression of speaker changes across audio segments. The combined structure formulates a comprehensive understanding of speaker identities over time.

The diarization output, calculated through a softmax layer, enables accurate predictions of speaker identities across time frames. The effectiveness of this hybrid approach ensures that the Neuro-TM Diarizer stands at the forefront of speaker diarization technology, paving the way for future developments in audio processing and analysis.

In essence, the Neuro-TM Diarizer exemplifies a sophisticated interplay of neural network architectures, preprocessing techniques, and innovative modeling strategies, marking a significant advancement in speaker diarization technology that promises enhanced accuracy and operational efficiency in various applications.
