Advancing Image Super-Resolution: Understanding the SR Problem and the DBAN Architecture

The Challenge of Super-Resolution

Image super-resolution (SR) is a critical area in computer vision involving the reconstruction of high-resolution (HR) images from low-resolution (LR) counterparts. The basic premise revolves around understanding how LR images, often seen in applications such as satellite imaging and medical imaging, can be enhanced to produce images that closely resemble their HR versions. In mathematical terms, we express this degradation of HR images through a mapping function.

Let’s define ( I_x ) as the LR image and ( I_y ) as the corresponding HR image. The degradation process can be succinctly represented as:

[
I_x = H(I_y; \delta)
]

Here, ( H(\cdot) ) denotes the degradation function, while ( \delta ) refers to parameters influencing this process, such as scaling, noise, and potential compression artifacts.

Simplified Degradation Models

In practice, most SR algorithms simplify degradation into single downsampling operations, denoted by:

[
H(I_y; \delta) = (I_y \otimes k) \downarrow s
]

where ( \downarrow s ) reflects the downsampling operation and ( I_y \otimes k ) indicates convolution with a blurring kernel ( k ). Understanding this is essential, as transforming LR images into HR images requires effectively reversing this degradation, a task that can be computationally intensive and complex.

Introducing the DBAN Architecture

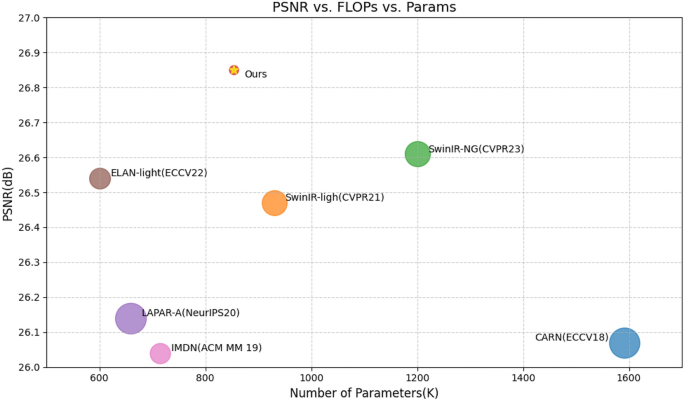

The proposed Dynamic Bilateral Attention Network (DBAN) architecture offers a sophisticated approach to tackling the SR problem. It comprises four core modules:

1. Shallow Feature Extraction: This module focuses on extracting fundamental features from the LR input.
2. Deep Feature Extraction: Here, more complex features are derived through stacked residual networks.
3. Feature Aggregation Module: This integrates features from various levels to ensure a rich representation.
4. Reconstruction Module: This final stage synthesizes the HR image from the processed features.

Input Structure

We start with the LR input ( I_x \in R^{h \times w \times 3} ), where (h) and (w) denote the image dimensions and the ‘3’ corresponds to the RGB color channels. The shallow feature extraction module uses a ( 3 \times 3 ) convolutional layer to elevate the dimensionality into a feature space:

[
F{LF} = H{LF}(I_x)
]

Deep Feature Processing

The deep features are then processed through multiple residual groups. Utilizing techniques such as residual connections, these groups consist of attention blocks designed to optimize the learning of features:

[
F{DF} = F{DF1} + F_{DF2}
]

This merging of features from both the shallow and deep modules ensures a more comprehensive representation of the input image.

Reconstruction

The reconstruction of the HR image ( I_{HR} ) from these features employs a tailored upsampling method, represented by:

[
I{HR} = H{RC}(F_{DF})
]

This module plays a pivotal role in generating visually coherent, high-quality images.

The Power of the Triple Attention Module

Central to the DBAN architecture is the innovative Triple Attention Module (TAM). Unlike conventional attention mechanisms, TAM incorporates a Token Dictionary Cross Global Attention strategy that utilizes external query priors. This mechanism enhances the network’s ability to learn from both local and global feature representations:

Enhancing Feature Selection

Before generating the query tokens ( Q_x ), we derive local features through convolutions, allowing for a nuanced understanding of spatial relationships in the image. Global features are simultaneously extracted, capturing larger contextual information. The weighted combination of these features produces a more robust representation:

[
X{combine} = \alpha X{local} + (1 – \alpha) X_{global}
]

This balanced approach ensures the model is not overly reliant on either local or global data, thus improving its performance in generating HR images.

Fusing Features with Spatial and Channel Attention

DBAN further integrates Spatial Window Self Attention (SW-SA) and Channel Window Self Attention (CW-SA) to capture long-range dependencies effectively. The SW-SA mechanism focuses on calculating attention weights within predefined spatial windows, optimizing feature enhancement:

[
Y_s = concat(Y_s^1, \ldots, Y_s^h)
]

For CW-SA, the attention operates within the channel dimension, emphasizing the interactions between channels rather than spatial locations. This dual-layered attention allows the model to adaptively decide which features to focus on, ensuring richer spatial information is captured.

Spatial Split Feature Module (SSFM)

To facilitate the extraction of multi-scale features while minimizing model complexity, the Spatial Split Feature Module (SSFM) is introduced. This involves segmenting the input features and generating attention maps to manage feature analysis dynamically. The SSFM is instrumental in enhancing the reconstruction capacity of the network, allowing it to utilize both local details and global structure efficiently:

[
\hat{X} = Conv_{1 \times 1}(Concat([\hat{X_0}, \hat{X_1}, \hat{X_2}, \hat{X_3}]))
]

Applying non-linear activation functions along the way drives better performance while keeping computational costs manageable.

Convolutional Channel Feature Mixer (CCFM)

Finally, the CCFM is designed to enhance local spatial modeling while performing channel mixing. It operates by first increasing the channel capacity through convolution and then adjusting back, utilizing the activation function to maintain fidelity in data flow:

[
Y = LN(CCFM(SSFM(LN(X))))
]

Synthesizing Robust Outputs

This comprehensive exploration of the DBAN architecture and its underlying components illustrates how new methodologies can enhance SR tasks, emphasizing both efficiency and effectiveness in reconstructing high-resolution images from low-resolution inputs. Each module plays a crucial role in ensuring the final output is of the highest quality, making strides in the ongoing evolution of image processing technology.
