Exploring an Advanced Multiclass Heart Disease Classification Model: From Data Processing to Classification

Introduction to the Research Framework

In an effort to enhance early detection and accurate classification of heart diseases, researchers have developed an advanced model that intricately combines multiple techniques, drawing from both traditional methods and cutting-edge technologies in deep learning. The framework primarily revolves around deploying a Modified Multiclass Attention Mechanism alongside a Deep Bidirectional Long Short-Term Memory (BiLSTM) architecture, tailored for efficient heart disease classification via ECG data.

Methodology Overview

The research encapsulates several key processes: the intricate structure of the proposed classification model, detailed data handling from preprocessing to feature extraction, and the use of distinct datasets that bolster the model’s performance.

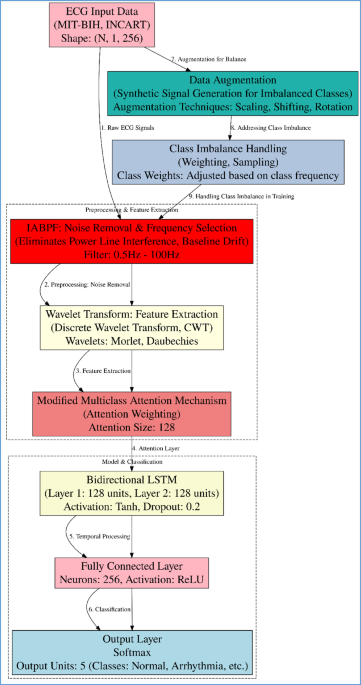

Proposed Model: Modified Multiclass Attention Mechanism (M2AM)

The crux of the proposed classification model lies in the implementation of the M2AM, which synergistically integrates with the BiLSTM architecture. The core objective of M2AM is to enhance classification accuracy for various heart diseases by dynamically adjusting attention weights based on the significance of specific features unique to each heart condition.

1. Data Preprocessing: The process begins with the filtering of the raw ECG signals using an Improved Adaptive Band Pass Filter (IABPF), designed to eliminate noise and preserve frequency components essential for effective analysis. Following this, wavelet transformations extract both temporal and spectral features of the ECG signals.

2. BiLSTM Processing: The preprocessed signal is then processed through the BiLSTM layer, which effectively learns from the sequences of input data in both forward and backward directions. This dual processing captures contextual information and temporal dependencies crucial for accurate classification.

3. Attention Mechanism: M2AM adapts attention weights for each heart disease class, allowing a more nuanced focus on features particularly relevant to distinguishing between conditions like arrhythmia and coronary artery disease. The model delivers improved discrimination capability while minimizing misclassification risks.

Mathematical Representation of M2AM

The attention weights are computed in a class-sensitive manner, providing a unique mechanism wherein:

[
Attention \; Weight{i} = \frac{{\exp(score(x{i},y{k}))}}{{\sum{k} \exp(score(x{i}, y{k}))}}
]

This formula captures the essence of M2AM, dynamically adjusting focus based on feature relevance for each class responsible for different heart diseases.

Novelty of the Modified Attention Mechanism

The M2AM distinguishes itself through several innovative attributes when juxtaposed with traditional attention mechanisms:

1. Class-Specific Attention: Unlike conventional attention mechanisms that apply a single global weight, M2AM computes distinct attention scores for each class, allowing the model to learn which features are most pertinent to specific heart diseases.

2. Dynamic Attention Weighting: Features that may hold equal importance across multiple classes are adeptly managed by M2AM, promoting flexibility in assigning weights. The model learns adaptively which aspects of the input features possess significances for specific disease classifications.

Data and Its Importance

The research leverages two prominent datasets that serve as a foundational layer for model training and evaluation: the MIT-BIH Arrhythmia Database and the INCART Dataset.

MIT-BIH Arrhythmia Database

A benchmark dataset in cardiovascular research, it encompasses 48 segments of two-channel ECG recordings and includes varied arrhythmias, facilitating comprehensive model training and evaluation. The depth and detail provided in annotation bolster model accuracy greatly.

INCART Dataset

The INCART database comprises recordings from 75 subjects, representing both normal and abnormal heart activity. The versatility in ECG patterns present in this dataset is paramount in developing robust algorithms for differentiating between heart conditions effectively.

Data Preprocessing Techniques

Data preprocessing plays a pivotal role in ensuring the integrity and quality of the input signals. Several key techniques were employed:

Improved Adaptive Band Pass Filter (IABPF)

The IABPF is critical for noise reduction, especially from power line interference and baseline drift. This filter dynamically adjusts its parameters according to incoming signal characteristics, enabling the retention of necessary waveforms while discarding irrelevant noise.

Wavelet Transformations

Wavelet transforms facilitate multi-resolution analysis, enabling the capture of both high-frequency transients and low-frequency components, thus emphasizing essential features like the QRS complex in ECG signals.

Normalization Techniques

Normalization is a crucial step to align ECG signals of different magnitudes, ensuring that the classifier treats each segment equally, thereby honing in on relevant characteristics that contribute to effective classification.

Data Augmentation Techniques

To enhance dataset diversity, data augmentation methods generated synthetic ECG signals through minor transformations, ensuring that the model generalizes well across varied heart conditions.

Addressing Class Imbalance

A significant challenge in heart disease classification is class imbalance, where certain conditions occur more frequently than others. The model handles this through various mechanisms, such as weighted sampling during training, resampling strategies, and employing metrics like precision and recall to evaluate performance across all classes comprehensively.

Conclusion of the Insights

This advanced multiclass heart disease classification model represents a significant stride in leveraging deep learning techniques for better diagnostic capabilities through ECG data analysis. The intricate design of M2AM, underscored by robust datasets and meticulous data handling strategies, promises improved accuracy and reliability in heart disease detection. As healthcare continues to evolve, such innovative approaches pave the way for enhanced detection and intervention strategies critical to improving patient outcomes.
