Utilizing Design Science Research to Innovate Teff-Weed Detection with Deep Learning
Introduction to the Study
The agricultural landscape in Ethiopia faces significant challenges, particularly with weed control in crops like Teff. To tackle these issues, a groundbreaking study was conducted using Design Science Research (DSR) methodology to develop and evaluate a deep learning model specifically designed for Teff-weed detection. DSR focuses on creating and assessing IT artifacts to solve organizational problems, combining theoretical rigor with practical application. This study exemplifies how DSR can enhance modern agricultural practices, particularly through UAV-based herbicide applications, emphasizing the balance between robust technical foundations and practical validation.
System Architecture Overview

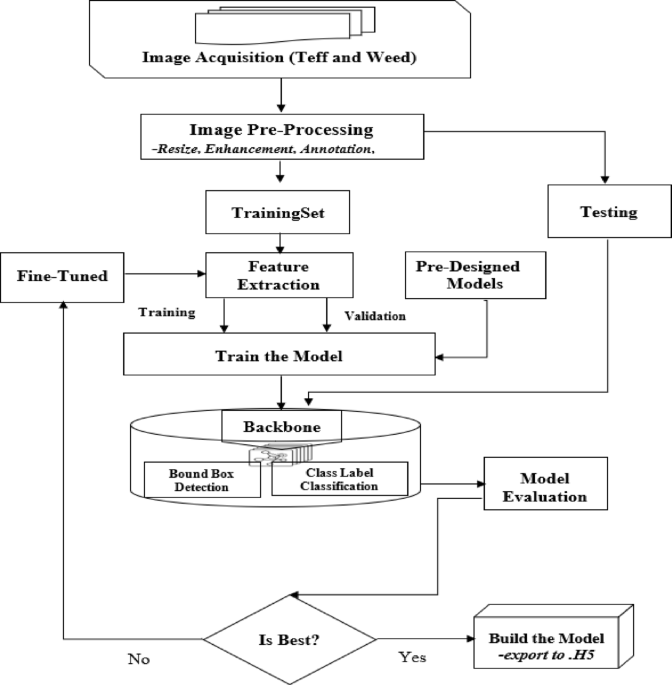

The proposed system architecture utilizes drones to capture images of Teff crops and surrounding weeds. As illustrated in Figure 1, the workflow starts with image acquisition, where high-resolution images are gathered using advanced drone cameras. Following acquisition, images undergo a detailed preprocessing phase, including resizing, enhancement, filtering, and normalization—transformations that ensure data suitability for training the deep learning model.
After preprocessing, the dataset is divided into training and testing subsets to find the ideal split ratio. The training phase utilizes feature extraction and harnesses pre-designed models, refining them for the specific task of weed detection. Model performance is continuously evaluated, with rigorous fine-tuning ensuring the model’s accuracy and robustness before deployment.
Image Acquisition Techniques
Aerial imagery serves as the backbone of this study. Images were meticulously captured over varying growth stages of Teff crops, employing a DJI Air 2S UAV equipped with high-resolution RGB cameras. Diverse environmental conditions, including sunlight variability and moisture levels, were incorporated into the data gathering process, creating a robust dataset. This dataset consisted of over 3,250 RGB images taken at resolutions of 3056 × 3056 pixels, emphasizing the importance of image clarity for effective analysis.
Experimental Setup
Teff seeds were sown during the summer of 2023 at the University of Gondar Agricultural Research Farm. Four experimental fields measuring 4 × 4 meters each were established under controlled conditions to mitigate the influence of topography on results. The UAVs captured images at altitudes between 1-2 meters, ensuring a comprehensive overview of weed density and crop health.
Data Preprocessing and Annotation
From the collected set of 3,250 images, annotations involved categorizing images into distinct classes for ‘Teff’ and ‘Weed’—a meticulous process facilitated by makesense.ai. Following this, various image preprocessing techniques such as resizing to 512 × 512 pixels were applied. Techniques like Gaussian filtering and normalization adjusted pixel intensities, preparing the images for feature extraction.
Enhancing Model Performance
Image preprocessing also included noise filtering and color normalization to ensure consistent feature extraction, vital for distinguishing between Teff crops and their competitors. The transformation benefits from mathematical formulations that standardize image inputs to streamline deep learning processes.
Feature Extraction Methodology
Feature extraction was pivotal for accurately identifying crops and weeds. The images underwent rigorous preprocessing, including normalization and segmentation, employing mathematical equations for precision. The convolution operation within deep learning models automatically learns crucial spatial hierarchies, such as edges and textures, enabling robust weed detection.
Pooling layers reduced dimensionality while preserving significant features, enhancing the model’s predictive power during operation. This process is essential for ensuring the model generalizes well across varied environmental factors.
Leveraging Transfer Learning
The study employed pre-trained models featuring well-known architectures like MobileNetV2 and InceptionResNetV2, applying transfer learning techniques to augment performance in detecting and classifying Teff and weed species. Each model undergoes fine-tuning to align with the unique visual characteristics present in Teff crops and surrounding weeds, creating a custom-tailored solution capable of accurate classification and bounding box detection.
Performance Evaluation Metrics
Upon training the models, evaluation was conducted using various metrics like accuracy, recall, precision, F1-score, and mean Average Precision (mAP). The detailed assessment utilizing COCO mAP enabled the researchers to gauge the model’s efficiency across multiple Intersection over Union (IoU) thresholds. This comprehensive evaluation framework supports the practical application of the deep learning model in real-world scenarios.
Optimizing Model Performance
Different optimization techniques were employed, including Aspect Ratio (AR) and Solidity-based classifications, allowing the model to distinguish between Teff and weed shapes effectively. The effectiveness of these techniques was demonstrated through extensive experimental validation, showcasing their capacity to enhance the model’s weed detection capabilities.
With data augmentation strategies, the study increased the initial dataset size from 1,308 images to 2,616 through various augmentation ratios. This boosted dataset empowered the model to achieve optimized results, achieving an impressive accuracy of 96.40%.
Conclusion Heading Towards Practical Application
The outcomes of this study present a compelling case for the integration of advanced deep learning techniques in agriculture, particularly for Teff-weed detection. Utilizing DSR not only promotes robust theoretical foundations but also drives practical implementations that can revolutionize agricultural practices. The full deployment of these results promises a more efficient and sustainable approach to weed management, emphasizing the significance of technology in enhancing agricultural productivity and resiliency in Ethiopia.
