Deep Learning in Understanding IgA Nephropathy: Insights from a Multi-Center Study

Overview of the Study

In recent years, significant advancements have been made in the study of IgA nephropathy (IgAN), a condition marked by the deposition of immunoglobulin A in the kidneys. The focus of this retrospective, multi-center study was to utilize biopsy-confirmed cases of primitive IgAN, sourced from seven renowned medical institutions across South Korea. These institutions included notable names such as Seoul National University Hospital (SNUH) and Asan Medical Center (AMC), among others.

The researchers aimed to establish a robust dataset comprising digital biopsy images to analyze the clinical and pathological variables associated with IgAN. Each patient’s demographic, clinical, and pathological characteristics were meticulously documented, ensuring a comprehensive understanding of the condition’s landscape.

Clinical and Pathological Variables

The study meticulously collected clinical variables, including:

• Estimated Glomerular Filtration Rate (eGFR)
• Serum Creatinine Levels
• Urine Protein-to-Creatinine Ratio (UPCR)

These parameters serve as critical indicators of kidney function and disease progression. Pathological variables, on the other hand, were sourced from standalone pathology reports, focusing solely on the quality and relevance of biopsy material.

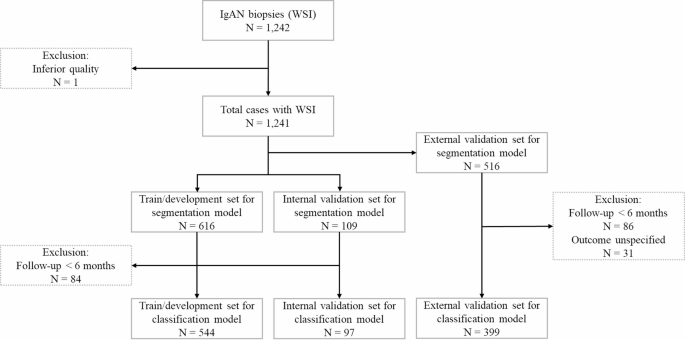

To ensure data integrity, specific exclusion criteria were established, filtering out biopsy slides deemed to be of inferior quality. Furthermore, cases with less than six months of follow-up were omitted for the development of prognostic classification models, ensuring that outcomes reflected long-term patient behavior.

Data Acquisition and Annotation Process

The digitization of biopsy slides was a crucial step, with varied formats such as ScanScope Virtual Slide (SVS) and TIF being utilized for image acquisition. Alongside standard microscopic glass slides, the digitized images were processed using advanced digital microscopy scanners (Aperio AT2). Distinct tissue cores and glomeruli were annotated by nephropathologists, categorized into five lesion types: no lesion, global sclerosis, segmental sclerosis, crescent, and ischemic change.

This categorization was pivotal not just for analysis, but also for creating a foundational dataset for machine learning models. Expert nephropathologists validated the annotations to ensure accuracy, further fortifying the dataset before model development commenced.

Model Development and Methodology

In the model development phase, a patch-based approach using a sliding window of 512 x 512 pixels was employed for the segmentation model. By applying a 50% overlap, researchers ensured comprehensive coverage of biopsy regions. Recognizing the class imbalance (where non-lesioned glomeruli significantly outnumbered lesioned ones), a combined sampling approach was utilized. This method ensured that underrepresented glomerulus classes were adequately represented in the training datasets.

Segmentation Model

A deep learning model was specifically designed to segment and classify glomeruli simultaneously. Utilizing DeepLabV3Plus as the backbone with EfficientNet-B3, the model was trained with an initial learning rate that incorporated adaptive learning strategies to optimize performance. Notably, post-processing techniques such as distance transform and watershed algorithms were applied to enhance the accuracy of glomerulus segmentation.

Morphological Feature Extraction

After segmentation, morphological features of the glomeruli were extracted to analyze their characteristics, crucial for understanding disease prognosis. Basic computer vision techniques facilitated the extraction of features such as:

• Area (number of pixels)
• Number of glomeruli
• Length of major and minor axes
• Solidness, compactness, eccentricity, and roundness

Notably, each feature was averaged across glomeruli to capture slide-level insights, providing a clear picture of the underlying pathology.

Prognostic Classification Model

The final stage of the study focused on classifying the kidney disease prognosis. Models were trained using image-based features extracted from the glomeruli and compared against traditional clinical models that utilized patient data. Scikit-learn libraries were employed to implement. This dual approach of combining image-based and clinical data aimed to enhance the robustness of the prognostic predictions.

Utilizing algorithms such as extreme gradient boosting (XGBoost), random forest, and logistic regression, the study provided a comprehensive analysis of long-term outcomes associated with IgAN. Receiver operating characteristic (ROC) analysis, along with area under the ROC curve (AUC), facilitated an evaluative framework for these classification models.

Statistical Analysis and Ethical Considerations

To ensure methodological rigor, the study adopted detailed statistical analyses to assess model performance. Metrics such as average precision (AP) and dice similarity coefficient (DSC) were utilized for segmentation performance. A significance level was established at p < 0.05 for all assessments.

Ethical considerations were paramount throughout the study, with Institutional Review Board approvals obtained from various medical institutions. Remarkably, the need for informed patient consent was waived, affirming adherence to ethical standards articulated in the Declaration of Helsinki.

Resources and Code Availability

For those interested in the technical aspects of this study, the code facilitating morphological feature extraction, model development, and evaluation is accessible via GitHub. This openness fosters collaboration and encourages further advancements in the field of nephrology and machine learning applications.

In summary, while this in-depth study sheds light on the intricate relationship between IgAN pathology and machine learning approaches, it also highlights the importance of collaborative research in the medical community. The insights gained from these analyses not only enhance our understanding of IgAN but also pave the way for future research that combines clinical expertise with technological innovations.
