cryoTIGER: A Deep Learning Tool for Enhanced Tilt Interpolation in Cryo Electron Tomography

Understanding Cryo Electron Tomography (cryo-ET) and Its Challenges

Cryo Electron Tomography (cryo-ET) is a groundbreaking imaging technique that allows researchers to visualize the 3D structures of biological specimens at high resolutions. By acquiring a series of 2D images from different tilt angles, cryo-ET constructs a 3D representation of the sample. However, one of the major challenges in cryo-ET is the sparse tilt series data. Typically, only a few angles are captured, leading to gaps that hinder comprehensive reconstructions. This is where advanced interpolation methods become crucial.

What is cryoTIGER?

cryoTIGER is a deep learning-based tool designed specifically for tilt interpolation in cryo-ET data. It enhances the interpolation of intermediate tilt angles using a method called Frame Interpolation for Large Motion (FILM), which employs a UNet-style architecture. This tool significantly improves the quality of reconstructions by filling in the gaps between experimentally acquired tilt images, leading to a more continuous and accurate 3D representation.

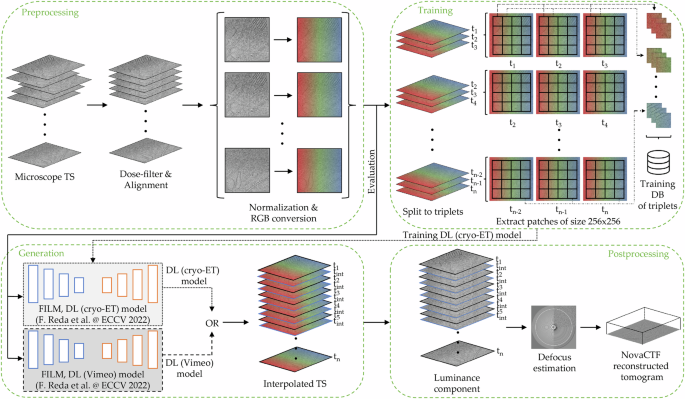

Components of cryoTIGER

The cryoTIGER framework consists of several key components:

1. Preprocessing: In this step, raw tilt series data undergo essential operations such as dose filtering, alignment, and normalization. These processes ensure that the data conforms to the requirements of the FILM algorithm.

2. Training: The model is trained on a diverse dataset, which includes various pixel sizes and tilt increments. This extensive training helps the model learn to handle the complexities and variabilities found in real-world cryo-ET data.

3. Generation: Here, the trained model generates interpolated images. Depending on the task at hand, two models can be used for generation: the DL (Vimeo) model, which has been trained on video data, and the DL (cryo-ET) model, tailored for cryo-ET data.

4. Postprocessing: In the final stage, the luminance component is extracted, followed by corrections for the Contrast Transfer Function (CTF), which optimizes the overall quality of the reconstructed images.

Each of these steps is designed to maximize efficiency and accuracy in interpolating tilt data, ultimately facilitating superior 3D reconstructions.

Lifecycle of cryoTIGER in Cryo-ET

1. Raw Data Acquisition: The first step involves the collection of tilt series from biological samples using electron microscopy.

2. Preprocessing: Here, the raw images are filtered and aligned to ensure consistency and compatibility with the deep learning model.

3. Training the Model: The cryoTIGER model undergoes training on large datasets, learning to predict intermediate tilt angles.

4. Generating New Images: Once trained, the model generates interpolated tilt images, filling in the gaps in the original series.

5. Postprocessing: The generated images are refined through defocus estimation and CTF correction, preparing them for analysis.

6. Analysis: The final interpolated images can now be used for detailed analysis, including particle identification and structural determination.

Practical Applications of cryoTIGER in Cryo-ET

One compelling example of cryoTIGER’s capabilities is its application in studying the nucleosomal structures within cells. By interpolating additional tilt angles between those that were experimentally obtained, researchers observed enhanced visibility of nucleosomal features that were otherwise indistinguishable in non-interpolated data. Such advancements allow for a deeper understanding of cellular organization at the molecular level.

Common Pitfalls in Cryo-ET Data Processing

One potential pitfall when utilizing interpolation in cryo-ET is overstating the quality of generated images. While deep learning models like cryoTIGER can significantly enhance data quality, they are still limited by the original data’s resolution and noise levels. It’s crucial to validate the generated images against ground truth data to avoid misinterpretations. Other common mistakes include using unoptimized datasets for training, which may yield poor interpolation performance. To mitigate these issues, researchers should ensure rigorous preprocessing and cross-validation techniques throughout their workflow.

Tools and Metrics Relevant to cryoTIGER

cryoTIGER leverages various tools and metrics to assess performance. Peak Signal-to-Noise Ratio (PSNR) and Structural Similarity Index (SSIM) are employed to quantify the quality of reconstructed images. These metrics offer insights into how well the interpolated images compare to the original images, providing quantitative support for the tool’s effectiveness. Additionally, other established frameworks like Dispatcher and MemBrain v2 can work in tandem with cryoTIGER, enhancing the overall data processing pipeline by enabling better segmentation and classification of cellular structures.

Variations and Trade-offs in Image Interpolation

While cryoTIGER utilizes deep learning for interpolation, other approaches like cubic interpolation remain available. Each method presents unique advantages and limitations. Cube interpolation is simpler and less computationally intensive but often falls short in terms of preserving structural details. CryoTIGER, on the other hand, offers a higher level of detail and accuracy in interpolated images, although it requires more computational resources. Researchers should carefully weigh these trade-offs based on their project needs, resources, and desired outcomes.

Frequently Asked Questions about cryoTIGER

What datasets can be used to train the cryoTIGER model?
The cryoTIGER model performs best when trained on diverse datasets that vary in pixel sizes and tilt increments. This diversity helps the model generalize better across different samples.

How does cryoTIGER compare to traditional interpolation methods?
Compared to traditional methods like linear interpolation, cryoTIGER frequently offers enhanced accuracy and detail in the interpolated images, which is critical for high-quality 3D reconstructions.

What are the computational requirements for cryoTIGER?
Running cryoTIGER typically necessitates substantial GPU resources, particularly during the training stage. Users should ensure adequate memory and processing capability to handle the training dataset efficiently.

Can cryoTIGER be used for real-time applications?
While cryoTIGER optimizes the interpolation process, real-time applications may still face challenges due to the computational demands. However, once the model is trained, generating interpolated images from new datasets is significantly faster.
