Challenges of Automated Tick Classification via Deep Learning in Citizen Science

Understanding Tick Species in Sweden: A Closer Look

Ticks are more than just nuisances; they are significant vectors of disease, posing health risks to both animals and humans. In Sweden, several tick species are under investigation by the Swedish Veterinary Agency (SVA) due to their implications for wildlife health and potential vector roles in zoonotic diseases. This article delves into the morphological features of specific tick species that are either endemic or sporadically reported in Sweden, highlighting their identification, implications for health, and the current investigative efforts underway.

Morphological Features of Tick Species

The classification of ticks hinges on their morphological traits, which vary significantly across species. Understanding these features is crucial, especially in a landscape where tracking and identifying ticks can prevent the transmission of diseases.

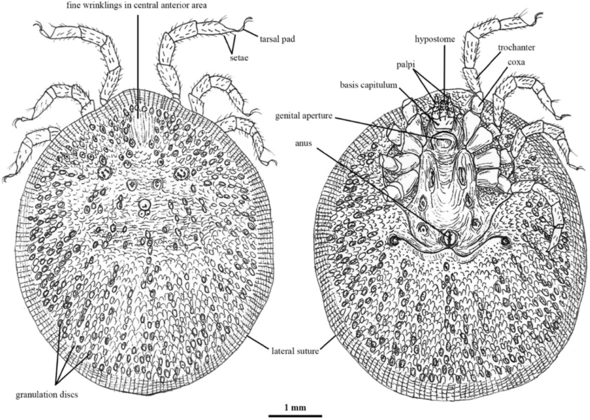

1. Carios (C.) vespertilionis (Endemic)

   • Commonly known as the bat tick, C. vespertilionis is primarily a parasite of bats. Its unique morphological characteristics include noteworthy wrinkling patterns in the anterior area and granulation discs, which facilitate attachment to its bat hosts. The implications of this tick extend beyond bats, as it may also harbor zoonotic pathogens, potentially posing a risk to humans.

2. Dermacentor (D.) spp. (Exotic)

   • The genus Dermacentor comprises over 35 species, with Dermacentor reticulatus (ornate cow tick) being the most notable in Europe. This species’ distinct body festoons and scutum’s patterned surface serve as primary identifiers. Recently reported cases of Dermacentor marginatus underscore the need for heightened awareness, but our focus remains on D. reticulatus due to its broader distribution and known vector roles in diseases like babesiosis.



3. Haemaphysalis punctata (Endemic, Regional Occurrence)

   • This tick displays significant adaptability, feeding on various birds, mammals, and occasionally humans. Key morphological features include a smooth, rounded body, the absence of eyes, prominent festoons, and distinct lateral grooves, which aid in its identification. Due to its role in disease transmission, its presence in certain regions within Sweden is of considerable interest.



4. Hyalomma spp. (Exotic)

   • This group includes Hyalomma marginatum, an established vector for serious viruses such as the Crimean-Congo hemorrhagic fever virus. Features such as elongated bodies, long mouthparts, and specialized legs for movement distinguish H. marginatum. Though sporadically reported in Northern Europe, its presence warrants close monitoring.



5. Ixodes (I.) hexagonus (Endemic)

   • Known as the hedgehog tick, this tick can transmit Lyme disease. Key distinguishing features include a compact body and fine cervical grooves. This tick’s lighter coloration, especially in engorged females, further assists in its identification.



6. Ixodes (I.) persulcatus (Endemic, Regional Occurrence)

   • A significant vector for Lyme borreliosis and tick-borne encephalitis, I. persulcatus can be easily confused with Ixodes ricinus. Its dark, compact scutum and lateral grooves are essential for identification; however, clear morphological distinctions can often be elusive, especially in engorged specimens.

7. Ixodes (I.) ricinus (Endemic)

   • As the most prevalent tick species in Sweden, I. ricinus serves as a primary vector for Lyme disease. Its round body, lack of eyes, and scutum with distinctive punctations are vital identification markers. This species is particularly important due to its high ecological and health impact, given its association with several diseases.



8. Rhipicephalus (R.) sanguineus Species Group (Exotic)

   • Known as the brown dog tick, R. sanguineus can transmit various canine diseases. Its slender body and unique scutal patterns make it recognizable. This tick’s ability to thrive indoors makes it particularly concerning for urban environments.



Tick Life Cycle

Ticks undergo a hemimetabolous life cycle comprising four stages: egg, larva, nymph, and adult. Each requires a blood meal to transition to the next stage.

• Egg Stage: Ticks begin life as eggs, which are laid in large quantities.
• Larval Stage: Once hatched, they progress to the larval stage, characterized by six legs.
• Nymph Stage: After molting, they develop into nymphs with eight legs, feeding on larger hosts.
• Adult Stage: In this stage, distinctions between sexes appear, and they require additional blood meals for reproduction.

Variations in Morphology Across Life Stages

Noteworthy is the pronounced morphological variation across tick life stages, which complicates identification. Nymphs are particularly small and less distinct compared to adult ticks, making them a challenge for classification based on imagery alone.

Data Collection and Sources

The classification and identification of ticks rely heavily on robust datasets. Multiple sources have contributed to the collection of tick images.

1. Global Biodiversity Information Facility (GBIF): Images were sourced for various tick species, although challenges such as mislabeled specimens were noted during preprocessing.

2. Tick Photography (TickExpand): Collaborations with SVA experts allowed for high-resolution photographic data of frozen specimens, enhancing the quality of samples available for analysis.

3. Swedish Veterinary Agency (SVA): SVA actively monitors tick populations through public submissions of tick images, contributing to a growing database that allows for real-time monitoring and classification.

4. Web Application (Report Tick): This citizen science initiative has yielded thousands of tick reports, reinforcing our understanding of tick distribution and diversity in Sweden.

Data Preprocessing and Training

The collected data underwent rigorous preprocessing to standardize it for analysis. Images were resized, and an object detection model was employed to optimize the input for deep learning classification tasks. The focus was on achieving a reliable model capable of identifying tick species accurately, ensuring minimal data leakage and maximizing efficiency.

Training and Model Evaluation

An expansive range of deep learning models was tested, with each undergoing training and evaluation stages. Robust data augmentation techniques were employed to improve model generalization. The model evaluation prioritized recall, ensuring rare tick species were detectable, crucial in public and animal health contexts.

This multifaceted approach to understanding and identifying tick species in Sweden underscores the complexity of tick monitoring and the integral role it plays in health surveillance. The ongoing research highlights the need for continued vigilance as the climate and ecological changes present new dynamics in tick populations and their associated risks.
