Understanding the Retrospective Analysis of Facial Symmetry in Patients with Unilateral Peripheral Facial Palsy

Approval and Ethical Considerations

In any clinical study, ethical oversight is paramount. This investigation was formally approved by the local institutional review board (IRB) at Jena University Hospital, under the registration number 2019-1539-BO. Due to the retrospective nature of this analysis, the IRB waived the requirement for written informed consent, adhering strictly to ethical guidelines and the Declaration of Helsinki. This commitment to ethical standards ensures the protection of participants while enabling researchers to explore vital medical questions.

Study Population and Image Acquisition

The backbone of any meaningful clinical investigation lies in its study population. This analysis included 518 datasets, culminating in a final set of 405 datasets from 198 patients diagnosed with unilateral peripheral facial palsy (PFP). Among these, there was a relatively balanced gender distribution, with 94 females and 104 males. The range of ages at the time of examination was quite broad, from 4 to 90 years, with a mean age of 53 years.

The age distribution is notable, with 10 datasets from patients aged 4-19 years, 118 from 20-39 years, 98 from 40-59 years, 159 from 60-79 years, and 20 from 80-90 years. This diversity in age not only enriches the dataset but also highlights the varying presentations and potential underlying etiologies of PFP across different age groups. Remarkably, 98 patients provided at least two datasets taken on different days during their therapy, offering insights into the temporal dynamics of facial nerve recovery.

Consistent Image Acquisition Protocol

To ensure the consistency and reliability of data, all photographs were taken by a dedicated clinical photographer under controlled conditions. Patients were positioned in front of a neutral-colored backdrop, with the photographer maintaining a reproducible frontal perspective while adjusting the camera’s angle and height as required. Key aspects of the setup included the use of softbox lighting to ensure even facial illumination, minimizing shadows and enhancing image quality. This meticulous approach to image acquisition is crucial for comparative analysis in a clinical setting.

For each patient, nine standardized facial photographs were captured, including expressions like neutral, eyes closed, frowning, lip pursing, and more. This variety allowed for a comprehensive analysis of facial symmetry and dynamic movements. The photographs were primarily taken with Nikon DSLR cameras, although some were captured using Canon and Sony devices, with varying degrees of technological settings applied, such as the use of flash and manual adjustments for white balance.

Image Preprocessing and Analysis

Diving into the analytical aspect of the study, the first step involved using a neutral facial expression as the reference for automated comparison with expressive images. By calculating the absolute differences between the neutral expression and the various expressive states, researchers could derive symmetry scores. This approach diverges from traditional methods by enabling the assessment of dynamic changes rather than relying solely on static facial asymmetries.

Advanced Processing Techniques

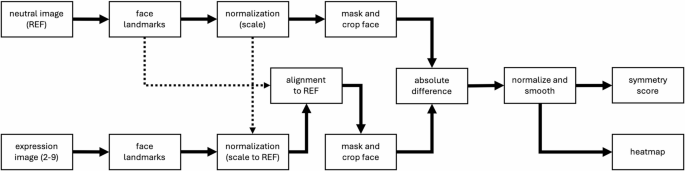

Utilizing advanced image processing, each image underwent a thorough preprocessing pipeline using Python and a deep learning-based facial landmark detection model. An impressive 478 facial landmarks were detected, allowing for precision in measuring variations in facial expressions. To ensure fairness in comparisons, images were uniformly scaled based on the interocular distance, followed by aligning expression images to the neutral reference.

The resulting data provided a vivid picture of dynamic facial changes, aided by the use of a masking technique to focus on key facial regions such as the eyes, nose, and mouth. By applying Gaussian smoothing techniques, high-frequency variations like skin texture or facial hair were minimized, ensuring that the key focus remained on the movement dynamics rather than irrelevant features.

Symmetry Score Calculation

The cornerstone of the analysis involved calculating symmetry scores for each dataset, offering a detailed picture of facial movement recovery over time. This score is derived by comparing pixel intensities between the left and right halves of the face, allowing for an objective measure of symmetry. The methodology employed here is robust, using a structured formula to normalize these scores and provide meaningful insights into the patient’s facial symmetry progression.

The final scores range from zero, indicating poor symmetry, to one, reflecting high symmetry. By conducting further analysis using methods like the Theil-Sen estimator, trends in individual patient scores were tracked, classified as showing improvement, deterioration, or no significant change over time. This statistical rigor is essential for identifying genuine clinical progress amidst the natural fluctuations seen in recovery scenarios.

Evaluation of Clinical Outcomes Using the Stennert Index

To explore the practical implications of the study, data from the Stennert Index, a well-regarded facial grading tool, were compared with the computed symmetry scores. This index evaluates the severity of facial asymmetry during rest and voluntary movements and is pivotal in clinical assessments. By correlating the Stennert scores with the image-derived symmetry scores, researchers aimed to determine the relationship between objective facial assessments and clinical evaluations, a vital consideration in clinical practice.

Statistics were applied to control for the data’s natural order, with Spearman’s rank correlation coefficient utilized to analyze the association. This technique is particularly apt for linking ordinal data from clinical assessments with continuous image-derived metrics, ultimately contributing to a deeper understanding of the complexities associated with facial nerve recovery.

This study not only highlights the multifaceted nature of facial nerve rehabilitation but also underscores the potential of advanced imaging techniques and objective measures in refining clinical practice. The integration of emerging technologies in healthcare can pave the way for enhanced patient outcomes and a more comprehensive understanding of facial dynamics in the context of peripheral facial palsy.
